Details
Characteristics

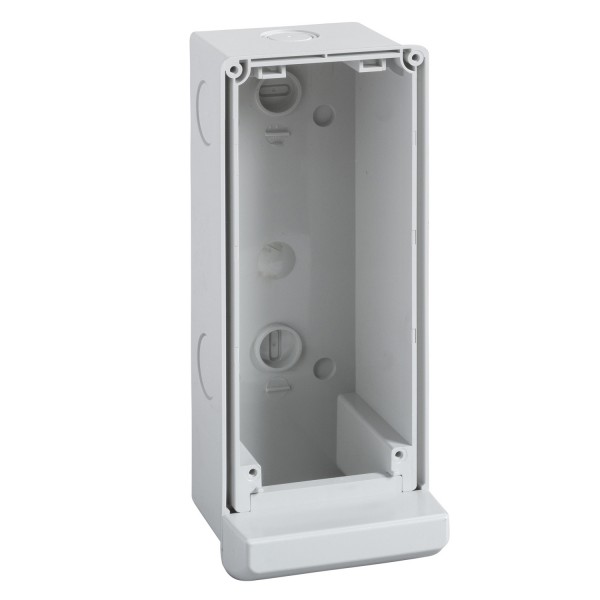

| product or component type | Mounting box |
|---|
| enclosure mounting | Wall mounted | |
|---|---|---|
| number of horizontal rows | 0 | |
| [In] rated current | 32 A16 A | |
| type of rail | DIN | |
| cable entry | : with knock-outs | |
| enclosure material | Housing: self-extinguishing polymer | |
| net weight | 0.352 kg | |
| base dimension | 103 x 225 mm | |
| width | 103 mm | |
| height | 250 mm | |
| depth | 70 mm | |
| colour | Housing: light grey (RAL 7035) |
| standards | IEC 695-2-1IEC 309-1IEC 309-2EN 60439-1EN 60309-2EN 62262EN 60309-1IEC 60529 | |
|---|---|---|
| fire resistance | 750 °C conforming to IEC 60695-2-1 | |
| IP degree of protection | IP65 conforming to IEC 60529 | |
| IK degree of protection | IK09 conforming to EN 50102 | |
| Environmental characteristics (UV) | UV resistant: class 3 conforming to ISO 4582:2010Ultraviolet degradation test conforming to ISO 4892-2:2013 | |
| ambient air temperature for operation | -25…40 °C |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| Environmental Disclosure | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
|---|
