Details
Characteristics
| range | PratiKa | |
|---|---|---|

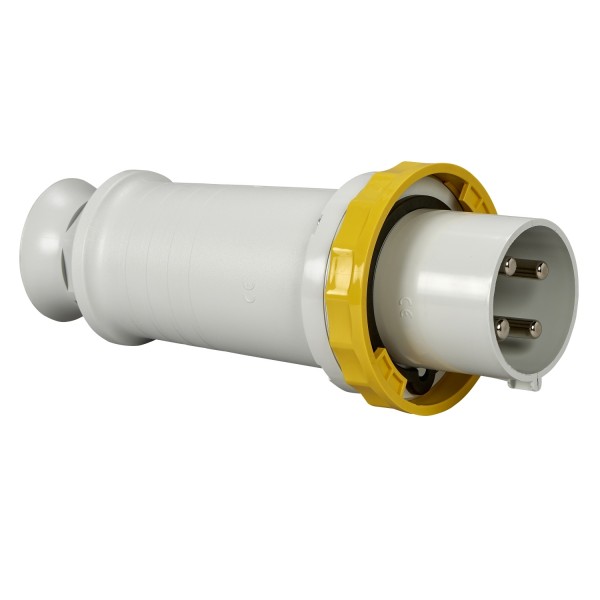

| product or component type | Wander plug | |
| device short name | PratiKa plug | |
| plug, socket category | Low voltage | |
| poles description | 3P + E | |
| network type | AC | |
| outlet standard | Industrial |
| plug, socket, control station shape | Straight | |
|---|---|---|
| [In] rated current | 125 A | |
| [Ue] rated operational voltage | 100...130 V | |
| network frequency | 50/60 Hz | |
| ground lug clockwise position | 4 h | |
| plug, socket material | Housing: self-extinguishing engineering polymer | |
| contacts material | Pins: nickel plated brass | |
| connections - terminals | Captive screws | |
| cable cross section | 16…70 mm² | |
| cable outer diameter | 26…48 mm | |
| cable entry | Cable gland | |
| thread type | Pg 48 | |
| net weight | 1.323 kg | |
| height | 325 mm | |
| width | 131 mm | |
| depth | 131 mm | |
| colour | Grey (RAL 7035) | |
| voltage colour | Yellow |
| standards | IEC 60309-2IEC 60309-1 | |
|---|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 | |
| IK degree of protection | IK08 conforming to EN 62262 | |
| fire resistance | 850 °C conforming to IEC 60695-2-11 | |
| relative humidity | 50 % at 40 °C70 % at 30 °C90 % at 20 °C | |
| operating altitude | 2000 m | |
| ambient air temperature for operation | 35 °C ( 86400 s ) -25…40 °C |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information | |
| Environmental Disclosure |
| Warranty | 18 months |
|---|
