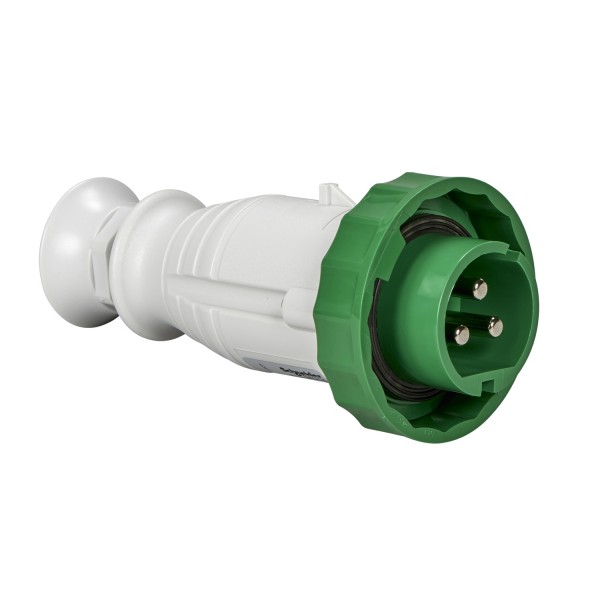

PratiKa wander plug - straight - 32 A - 3P - 20...25 V AC

Details

Complementary
plug, socket, control station shape	Straight
[In] rated current	32 A
[Ue] rated operational voltage	40...50 V 20...25 V
network frequency	401/500 Hz
secondary keyway clockwise position	11 h
plug, socket material	Housing: self-extinguishing engineering polymer
contacts material	Pins: nickel plated brass
connections - terminals	Captive screws
cable cross section	4…10 mm²
cable outer diameter	6…23 mm
cable entry	Cable gland
thread type	Pg 21
net weight	0.181 kg
height	145 mm
width	71.5 mm
depth	71.5 mm
colour	Grey (RAL 7035)
voltage colour	Green

Environment
standards	IEC 60309-1 IEC 60309-2
IP degree of protection	IP67 conforming to IEC 60529
IK degree of protection	IK08 conforming to EN 62262
fire resistance	850 °C conforming to IEC 60695-2-11
relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
operating altitude	2000 m
ambient air temperature for operation	35 °C ( 86400 s ) -25…40 °C

Contractual warranty
Warranty	18 months
