Details
Characteristics
| range | PratiKa | |
|---|---|---|

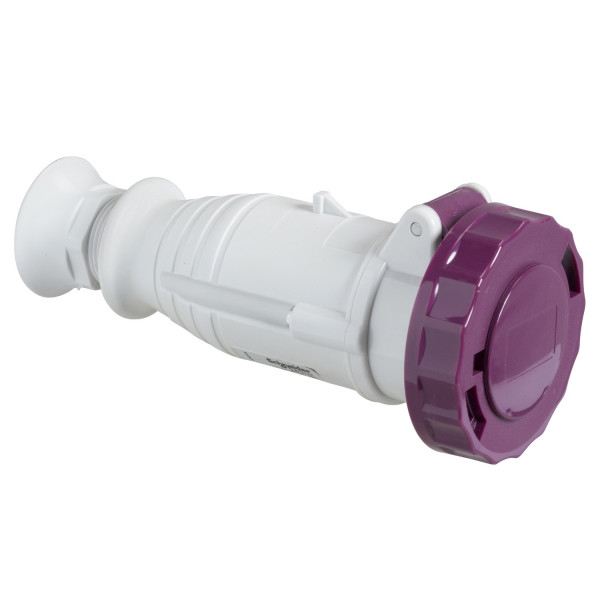

| product or component type | Wander socket | |
| device short name | PratiKa socket | |
| plug, socket category | Extra-low voltage | |
| poles description | 3P | |
| network type | AC | |
| outlet standard | Industrial |
| plug, socket, control station shape | Straight | |
|---|---|---|
| [In] rated current | 16 A | |
| [Ue] rated operational voltage | 20...25 V | |
| network frequency | 50/60 Hz | |
| plug, socket material | Housing: self-extinguishing engineering polymer | |
| contacts material | Pins: stainless steelSleeves: nickel plated brassSprings: stainless steel | |
| connections - terminals | Captive screws | |
| cable cross section | 4…10 mm² | |
| cable outer diameter | 6…23 mm | |
| cable entry | Cable gland | |
| thread type | Pg 21 | |
| net weight | 0.223 kg | |
| height | 73 mm | |
| width | 73 mm | |
| depth | 159 mm | |
| colour | Grey (RAL 7035) | |
| voltage colour | Violet |
| standards | IEC 60309-1IEC 60309-2 | |
|---|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 | |
| IK degree of protection | IK08 conforming to EN 62262 | |
| fire resistance | 850 °C conforming to IEC 60695-2-1 | |
| relative humidity | 50 % at 40 °C70 % at 30 °C90 % at 20 °C | |
| ambient air temperature for operation | 35 °C ( 86400 s ) -25…40 °C |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information | |
| Environmental Disclosure |
| Warranty | 18 months |
|---|
