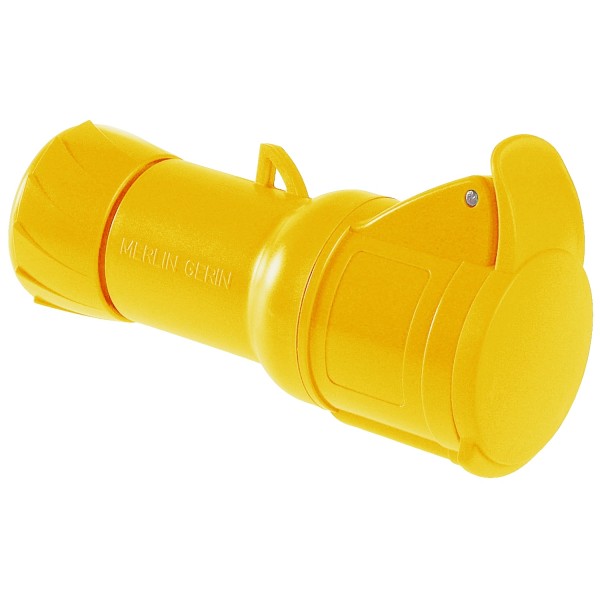

PratiKa wander socket - straight - 32 A - 3P + E - 100...130 V AC - IP44

Ülevaaded: 0

Tootekood: PKY32M414

Quick Overview

Saadavus: Tellimisel

9,17 € (ilma KM-ta)

Details

Main
range
PratiKa
product or component type
Wander socket
device short name
PratiKa fast
plug, socket category
Low voltage
poles description
3P + E
network type
AC
outlet standard
Industrial
Complementary
plug, socket, control station shape
Straight
[In] rated current
32 A
[Ue] rated operational voltage
100...130 V
network frequency
50/60 Hz
ground lug clockwise position
4 h
plug, socket material
Housing: self-extinguishing engineering polymer
contacts material
Sleeves: brass
connections - terminals
Fast connection
cable cross section
2.5…6 mm²
cable outer diameter
11.5…21 mm
cable entry
Cable gland
Fair lead
thread type
Pg 21
net weight
0.26 kg
height
98 mm
width
98 mm
depth
165 mm
colour
Grey (RAL 7035)
voltage colour
Yellow
Environment
standards
IEC 60309-1
IEC 60309-2
IP degree of protection
IP44 conforming to IEC 60529
IK degree of protection
IK08 conforming to EN 62262
fire resistance
850 °C conforming to IEC 60695-2-1
relative humidity
50 % at 40 °C
70 % at 30 °C
90 % at 20 °C
ambient air temperature for operation
35 °C ( 86400 s )
-25…40 °C
Offer Sustainability
Sustainable offer status
Green Premium product
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
