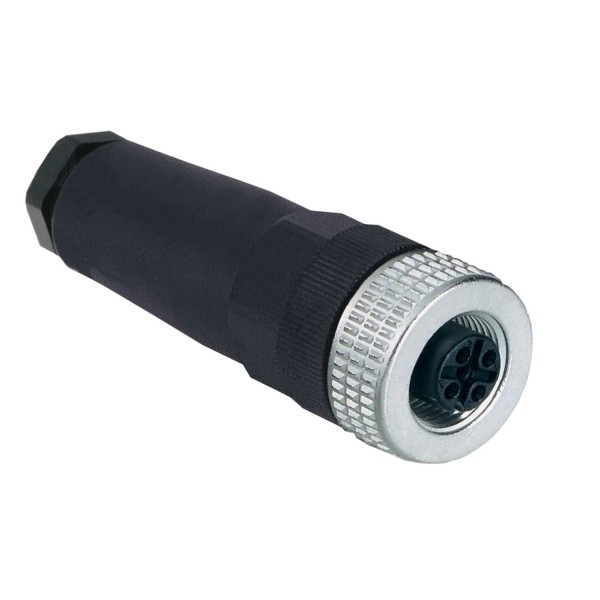

pre-wired connectors XZ - straight female - 7/8" - 4 pins - cable PVC 5m

Tootekood: XZCPY4275L5

Quick Overview

Saadavus: Tellimisel

56,78 € (ilma KM-ta)

Qty:

Main
accessory / separate part category	Cabling accessory
accessory / separate part type	Pre-wired connectors
series name	General purpose

Complementary
electrical connection	Straight female connector 7/8", 4 pins
cable connector fixing	Screw-on
collar material	Metal
status LED	Without
cable length	5 m
cable outer diameter	10,8 mm
cable composition	4 x 1.5 mm²
wire insulation material	PVC
[Ue] rated operational voltage	600 V AC 600 V DC
[In] rated current	10 A
contact resistance	5000 µOhm
minimum insulating resistance	1 GΩ
net weight	0,85 kg

Environment
IP degree of protection	IP67
product certifications	CULus
ambient air temperature for operation	-25…80 °C static
ambient air temperature for storage	-25…80 °C

Contractual warranty
Garantii	18 months
