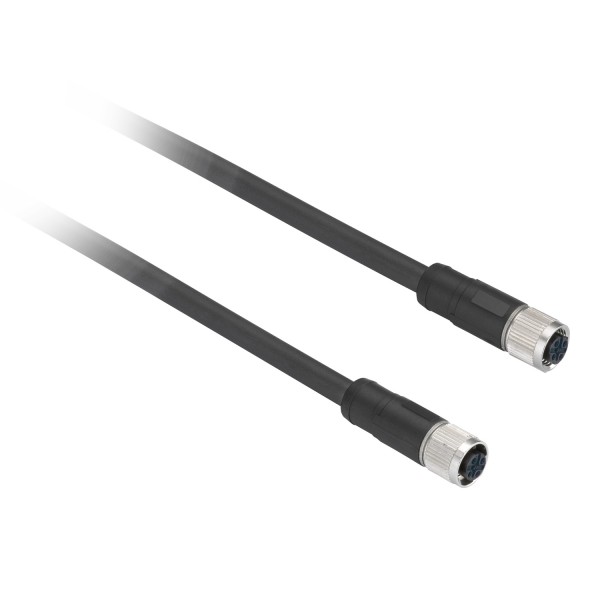

pre-wired connectors XZ - straight female - M12 - 5 pins - cable PVC 10m

Tootekood: XZCPV11V12L10

Quick Overview

Saadavus: Tellimisel

20,68 € (ilma KM-ta)

Qty:

Main
accessory / separate part category	Cabling accessory
accessory / separate part type	Pre-wired connectors
series name	General purpose

Complementary
electrical connection	Straight female connector M12, 5 pins
cable connector fixing	Screw-on
collar material	Metal
status LED	Without
cable length	10 m
cable outer diameter	5.2 mm
cable composition	5 x 0.34 mm²
wire insulation material	PVC
[Ue] rated operational voltage	60 V AC 75 V DC
[In] rated current	3 A
contact resistance	5000 µOhm
minimum insulating resistance	1 GΩ
net weight	0.36 kg

Environment
IP degree of protection	IP65 IP67
product certifications	CULus
ambient air temperature for operation	-25…80 °C static
ambient air temperature for storage	-25…80 °C

Offer Sustainability
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes

Contractual warranty
Warranty	18 months
