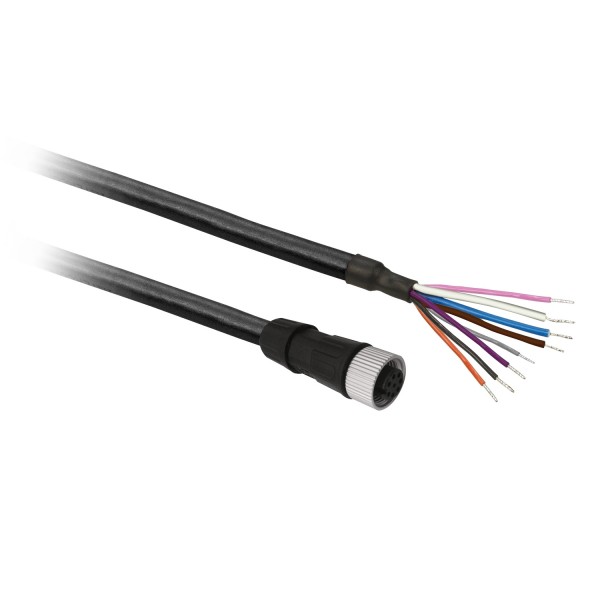

pre-wired connectors XZ - straight female - M12 - 8 pins - cable PUR 10m

Tootekood: XZCP29P12L10

Quick Overview

Saadavus: Tellimisel

147,34 € (ilma KM-ta)

Qty:

Main
accessory / separate part category	Cabling accessory
accessory / separate part type	Pre-wired connectors
series name	Application

Complementary
electrical connection	Straight female connector M12, 8 pins
cable connector fixing	Screw-on
collar material	Nickel plated brass
status LED	Without
cable length	10 m
cable outer diameter	6,4 mm
cable composition	8 x 0.34 mm²
wire insulation material	PUR
[Ue] rated operational voltage	30 V AC 36 V DC
[In] rated current	2 A
contact resistance	5000 µOhm
minimum insulating resistance	1 GΩ
net weight	0,47 kg

Environment
IP degree of protection	IP69K IP67 IP65
ambient air temperature for storage	-40…90 °C

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah

Contractual warranty
Garantii	18 months
