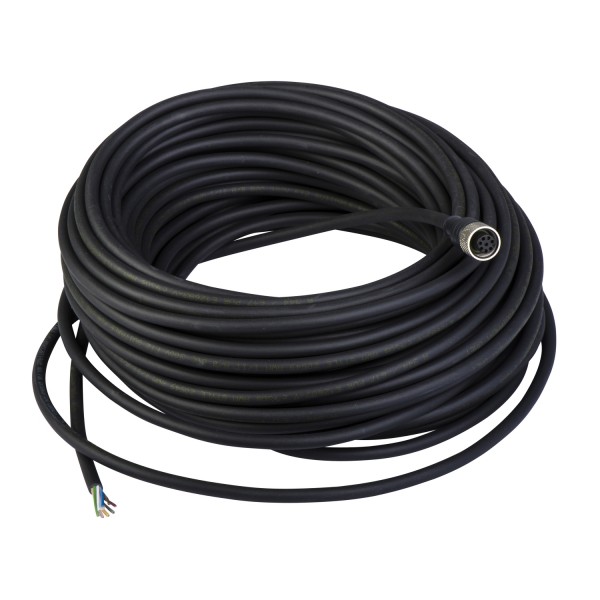

pre-wired connectors XZ - straight female - M12 - 8 pins - cable PUR 25m

Tootekood: XZCP29P11L25

Quick Overview

Saadavus: Tellimisel

83,86 € (ilma KM-ta)

Qty:

Main
accessory / separate part category	Cabling accessory
accessory / separate part type	Pre-wired connectors

Complementary
electrical connection	Straight female connector M12, 8 pins
cable connector fixing	Screw-on
collar material	Stainless steel 316L
status LED	Without
cable length	10 m
cable outer diameter	5.2 mm
cable composition	8 x 0.25 mm²
wire insulation material	PUR
[Ue] rated operational voltage	250 V AC 300 V DC
[In] rated current	2 A
contact resistance	5000 µOhm
minimum insulating resistance	1 GΩ

Environment
IP degree of protection	IP67
product certifications	CULus
ambient air temperature for operation	-35…90 °C static -5…90 °C flexing
ambient air temperature for storage	-35…100 °C

Offer Sustainability
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
