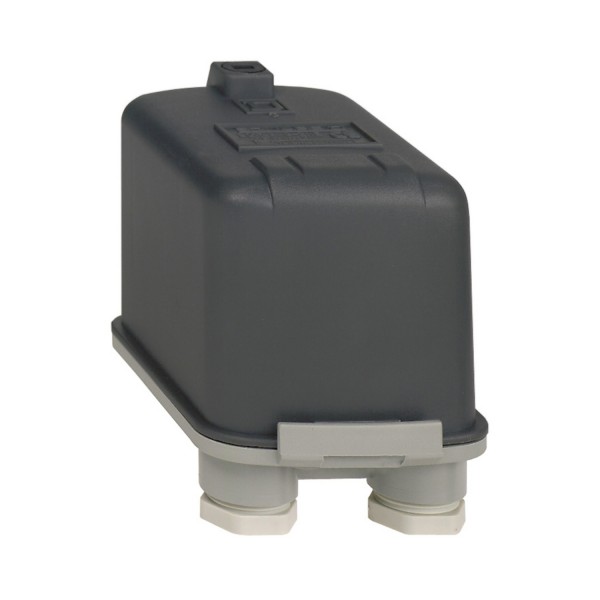

pressure switch FYG 10.5 bar - adjustable scale 2 thresholds

Details

Main
range of product	OsiSense XM
pressure sensor type	Electromechanical pressure sensor
pressure sensor name	FYG
pressure sensor size	10,5 bar
fluid connection type	G 1/4 (female) ISO 228
controlled fluid	Fresh water 0…70 °C) Sea water 0…70 °C)
cable entry	2 entries incorporating Pg 13.5 plastic cable gland 9…13 mm NF C 68-300
contacts type and composition	2 NC snap action
product specific application	-
pressure switch type of operation	Regulation between 2 thresholds
[In] rated current	10 A 250 V AC EN 60730-1
electrical connection	Screw-clamp terminals 1 x 1...2 x 2 mm²
short-circuit protection	20 A cartridge fuse gG
scale type	Adjustable differential
setting	Internal
local display	Without
electrical circuit type	Power circuit

Complementary
materials in contact with fluid	Nitrile Zinc plated steel Nylon 6/6
enclosure material	PS
operating position	Any position
motor power kW	0,75 kW 1 hp 110 V AC, 1 phase 1,1 kW 1,5 hp 110 V AC, 3 phases 1,5 kW 2 hp 230 V AC, 1 phase 1,5 kW 2 hp 400 V AC, 1 phase 2,2 kW 3 hp 230 V AC, 3 phases 2,2 kW 3 hp 400 V AC, 3 phases
adjustable range of switching point on falling pressure	2,6…8,2 bar
adjustable range of switching point on rising pressure	5,6…10,5 bar
possible differential minimum at low setting	1,9 bar
possible differential minimum at high setting	2,3 bar
possible differential maximum at low setting	3 bar
possible differential maximum at high setting	3,4 bar
maximum permissible accidental pressure	15 bar
maximum permissible pressure - per cycle	13 bar
destruction pressure	20 bar
pressure actuator	Diaphragm
electrical durability	100000 cycles 10 cyc/mn
mechanical durability	1000000 cycles
terminal block type	4 terminals
possible differential minimum at middle setting	2,1 bar
possible differential maximum at middle setting	3,2 bar
maximum operating rate	10 cyc/mn
[Ui] rated insulation voltage	500 V EN/IEC 60947-1
[Uimp] rated impulse withstand voltage	6 kV EN/IEC 60947-1
net weight	0,34 kg
repeat accuracy	2 %
terminals description ISO n°1	(3-4)NC (1-2)NC
depth	106 mm
height	115 mm
width	72 mm

Environment
standards	EN/IEC 60730 CE
ambient air temperature for operation	0…45 °C
ambient air temperature for storage	-30…80 °C
protective treatment	TC
electrical shock protection class	Class I IEC 536
IP degree of protection	IP65 EN/IEC 60529

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
