Details
Characteristics

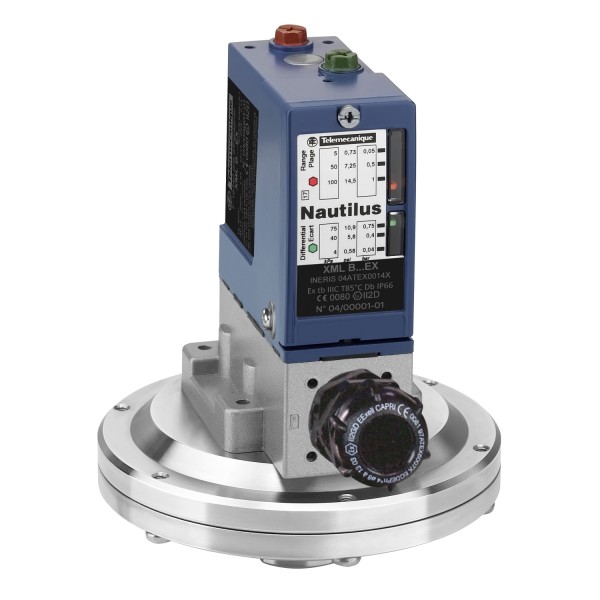

| range of product | OsiSense ATEX D | |
|---|---|---|
| pressure sensor type | Electromechanical pressure sensor | |
| product specific application | ATEX D | |
| pressure sensor name | XMLB | |
| electrical circuit type | Control circuit | |
| pressure switch type of operation | Regulation between 2 thresholds | |
| scale type | Adjustable differential | |
| pressure sensor size | 0.35 bar | |
| local display | With | |
| fluid connection type | G 1/4 (female) conforming to ISO 228 | |
| adjustable range of switching point on falling pressure | 0.003…0.3 bar | |
| adjustable range of switching point on rising pressure | 0.045…0.35 bar | |
| possible differential maximum at high setting | 0.3 bar | |
| maximum permissible accidental pressure | 2.25 bar | |
| destruction pressure | 4.5 bar | |
| pressure actuator | Diaphragm | |
| controlled fluid | Air (0…70 °C)Hydraulic oil (0…70 °C)Water (0…70 °C) | |
| materials in contact with fluid | FPM, FKMSteelStainless steel | |
| enclosure material | Zinc alloy |
| maximum permissible pressure - per cycle | 1.25 bar | |
|---|---|---|
| cable entry number | 1 tapped entry for M20 x 1.5 cable gland (included) | |
| terminal block type | 4 terminals | |
| repeat accuracy | 2 % | |
| auxiliary contacts operation | Snap action | |
| contacts material | Silver contacts | |
| mechanical durability | 4000000 cycles | |
| setting | External | |
| terminals description ISO n°1 | (13-14-11-12)OF | |
| height | 162 mm | |
| depth | 110 mm | |
| width | 110 mm |
| standards | EN/IEC 60079-0EN/IEC 60079-31 | |
|---|---|---|
| directives | 2014/34/EU - ATEX directive | |
| product certifications | INERIS 04ATEX0058IEC-Ex INE 17.0019 | |
| marking | II2 D-Ex tb IIIC T85°C Db IP66 | |
| protective treatment | TC | |
| ambient air temperature for operation | -20…60 °C | |
| operating position | Any position |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| Environmental Disclosure |
| Warranty | 18 months |
|---|
