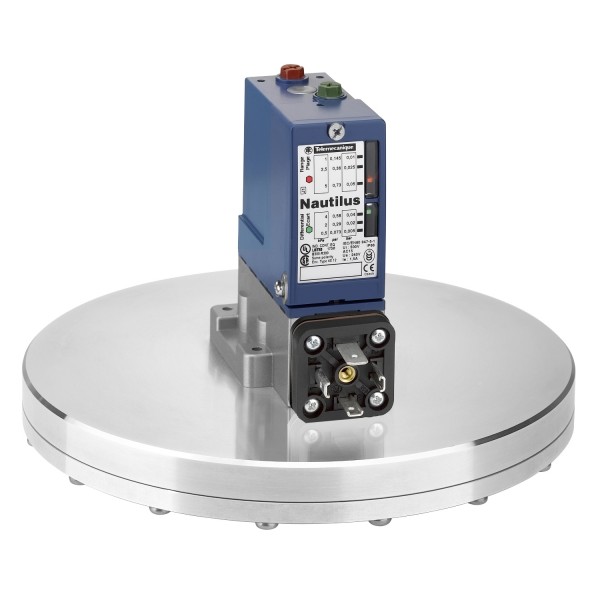

pressure switch XMLB 50 mbar - adjustable scale 2 thresholds

Details

Main
range of product	OsiSense XM
product or component type	Electromechanical pressure sensor
pressure sensor type	Electromechanical pressure sensor
device short name	XMLB
pressure sensor size	0.05 bar
controlled fluid	Air (0…160 °C) Hydraulic oil (0…160 °C)
fluid connection type	G 1/4 (female) conforming to ISO 228
electrical connection	1 male connector EN 175301-803-A (ex DIN43650), 4 pins
contacts type and composition	1 C/O
product specific application	-
pressure switch type of operation	Regulation between 2 thresholds
electrical circuit type	Control circuit
scale type	Adjustable differential
local display	With
adjustable range of switching point on rising pressure	0.0026…0.05 bar
adjustable range of switching point on falling pressure	0.0012…0.046 bar
possible differential maximum at high setting	0.04 bar
maximum permissible accidental pressure	0.1125 bar
destruction pressure	0.225 bar
pressure actuator	Diaphragm
materials in contact with fluid	Aluminium FPM, FKM
enclosure material	Zinc alloy
[In] rated current	3 A, B300, AC-15 (Ue = 120 V) conforming to EN/IEC 60947-5-1 1.5 A, B300, AC-15 (Ue = 240 V) conforming to EN/IEC 60947-5-1 0.1 A, R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1

Complementary
possible differential minimum at low setting	0.0014 bar (- 0.8 mbar, + 1.1 mbar)
possible differential minimum at high setting	0.004 bar (+/- 1.4 mbar)
maximum permissible pressure - per cycle	0.625 bar
terminal block type	4 terminals
maximum operating rate	120 cyc/mn
repeat accuracy	2 %
[Ui] rated insulation voltage	300 V conforming to UL 508 500 V conforming to EN/IEC 60947-1 300 V conforming to CSA C22.2 No 14
[Uimp] rated impulse withstand voltage	6 kV EN/IEC 60947-1
auxiliary contacts operation	Snap action
contacts material	Silver contacts
maximum resistance across terminals	25 mOhm conforming to IEC 255-7 category 3 25 mOhm conforming to NF C 93-050 method A
short-circuit protection	10 A cartridge fuse, type gG (gl)
mechanical durability	6000000 cycles
setting	External
height	145 mm
depth	204 mm
width	200 mm
net weight	2.42 kg

Environment
standards	EN/IEC 60947-5-1 UL 508 CE CSA C22.2 No 14
product certifications	UL LROS (Lloyds register of shipping) EAC CCC BV CSA
protective treatment	TC standard version
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…70 °C
operating position	Any position
vibration resistance	4 gn conforming to IEC 60068-2-6 (f = 30…500 Hz)
shock resistance	50 gn conforming to IEC 60068-2-27
electrical shock protection class	Class I conforming to IEC 1140 Class I conforming to IEC 536 Class I conforming to NF C 20-030
IP degree of protection	IP65 conforming to EN/IEC 60529

Contractual warranty
Warranty	18 months
