pressure switch XMLB - 500 bar - adjustable scale 2 thresholds - 1 C/O

Product was successfully added to your shopping cart.

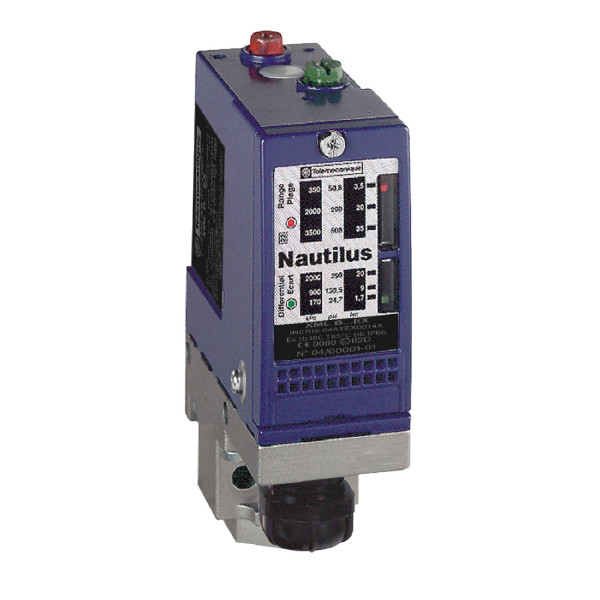

pressure switch XMLB - 500 bar - adjustable scale 2 thresholds - 1 C/O

Tootekood: XMLB500D2S12EX

Quick Overview

Saadavus: Tellimisel

362,32 € (ilma KM-ta)

Qty:

Details

Main
range of product	OsiSense ATEX D
pressure sensor type	Electromechanical pressure sensor
product specific application	ATEX D
pressure sensor name	XMLB
electrical circuit type	Control circuit
pressure switch type of operation	Regulation between 2 thresholds
scale type	Adjustable differential
pressure sensor size	500 bar
local display	With
fluid connection type	G 1/4 (female) conforming to ISO 228
adjustable range of switching point on falling pressure	7…447.4 bar
adjustable range of switching point on rising pressure	30…500 bar
possible differential maximum at high setting	300 bar
maximum permissible accidental pressure	1125 bar
destruction pressure	2250 bar
pressure actuator	Piston
controlled fluid	Hydraulic oil (0…70 °C) Air (0…70 °C) Water (0…70 °C)
materials in contact with fluid	Brass PTFE FPM, FKM Steel
enclosure material	Zinc alloy

Complementary
maximum permissible pressure - per cycle	625 bar
cable entry number	1 tapped entry for M20 x 1.5 cable gland (included)
terminal block type	4 terminals
repeat accuracy	2 %
auxiliary contacts operation	Snap action
contacts material	Silver contacts
mechanical durability	3000000 cycles
setting	External
terminals description ISO n°1	(13-14-11-12)OF
height	113 mm
depth	75 mm
width	35 mm

Environment
standards	EN/IEC 60079-0 EN/IEC 60079-31
directives	2014/34/EU - ATEX directive
product certifications	INERIS 04ATEX0058 IEC-Ex INE 17.0019
marking	II2 D-Ex tb IIIC T85°C Db IP66
protective treatment	TC
ambient air temperature for operation	-20…60 °C
operating position	Any position

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile

Contractual warranty
Warranty	18 months
