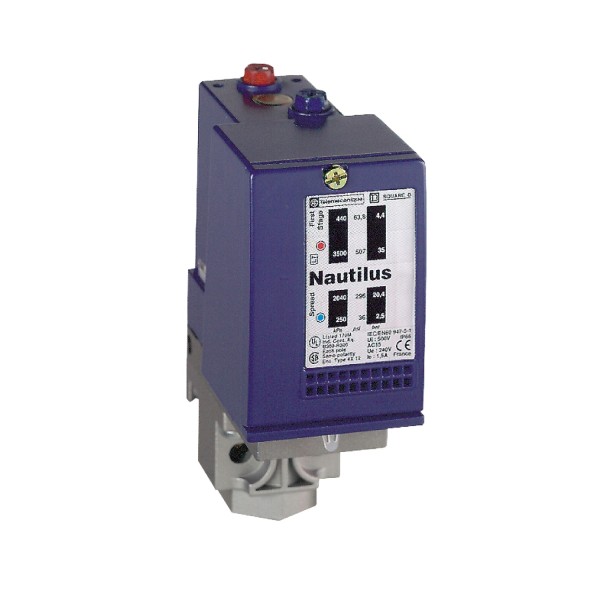

pressure switch XMLD 160 bar - 2 stages fixed scale

Details

Main
range of product	OsiSense XM
product or component type	Electromechanical pressure sensor
pressure sensor type	Electromechanical pressure sensor
device short name	XMLD
pressure sensor size	160 bar
controlled fluid	Hydraulic oil (0…160 °C)
fluid connection type	1/4" - 18 NPTF (female)
electrical connection	Screw-clamps terminals, 1 x 0.5...2 x 2.5 mm²
AWG gauge	AWG 20...AWG 14
cable entry	Cable gland
contacts type and composition	2 C/O snap action, silver contacts 2 C/O staggered, silver contacts
product specific application	Dual stage
pressure switch type of operation	Detection of 2 single thresholds
electrical circuit type	Control circuit
scale type	Fixed differential
local display	Without
maximum permissible accidental pressure	360 bar
destruction pressure	720 bar
pressure actuator	Piston
materials in contact with fluid	FPM, FKM Brass PTFE Steel
enclosure material	Zinc alloy
[In] rated current	3 A, B300, AC-15 (Ue = 120 V) conforming to EN/IEC 60947-5-1 1.5 A, B300, AC-15 (Ue = 240 V) conforming to EN/IEC 60947-5-1 0.1 A, R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1

Complementary
spread between 2 stages	6…83 bar
natural differential at low setting	8.8 bar
natural differential at high setting	20 bar
maximum permissible pressure - per cycle	200 bar
terminal block type	8 terminals
maximum operating rate	60 cyc/mn
repeat accuracy	2 %
[Ui] rated insulation voltage	300 V conforming to UL 508 500 V conforming to EN/IEC 60947-1 300 V conforming to CSA C22.2 No 14
[Uimp] rated impulse withstand voltage	EN/IEC 60947-1 6 kV
maximum resistance across terminals	25 mOhm conforming to IEC 255-7 category 3 25 mOhm conforming to NF C 93-050 method A
short-circuit protection	10 A cartridge fuse, type gG (gl)
mechanical durability	6000000 cycles
setting	External
height	113 mm
depth	85 mm
width	46 mm
net weight	0.75 kg

Environment
standards	UL 508 CE EN/IEC 60947-5-1 CSA C22.2 No 14
product certifications	CSA EAC UL
protective treatment	TC standard version
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…70 °C
operating position	Any position
vibration resistance	4 gn conforming to IEC 60068-2-6 (f = 30…500 Hz)
shock resistance	50 gn conforming to IEC 60068-2-27
electrical shock protection class	Class I conforming to IEC 1140 Class I conforming to IEC 536 Class I conforming to NF C 20-030
IP degree of protection	IP66 conforming to EN/IEC 60529

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile

Contractual warranty
Warranty	18 months
