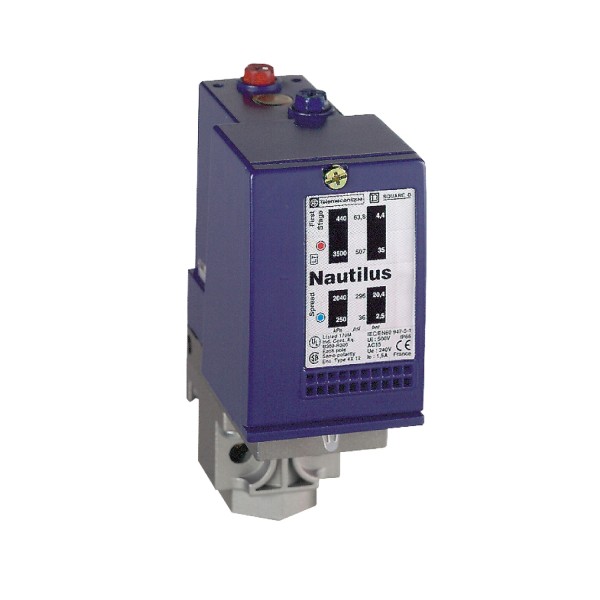

pressure switch XMLD 20 bar - 2 stages fixed scale - 2 C/O

Tootekood: XMLD020B1S12

Quick Overview

Saadavus: Tellimisel

277,35 € (ilma KM-ta)

Details

Main
range of product
OsiSense XM
product or component type
Electromechanical pressure sensor
pressure sensor type
Electromechanical pressure sensor
device short name
XMLD
pressure sensor size
20 bar
controlled fluid
Air (0…160 °C)
Fresh water (0…160 °C)
Hydraulic oil (0…160 °C)
fluid connection type
G 1/4 (female) conforming to ISO 228
electrical connection
Screw-clamps terminals, 1 x 0.5...2 x 2.5 mm²
AWG gauge
AWG 20...AWG 14
cable entry
Cable gland 7…13 mm
contacts type and composition
2 C/O snap action, silver contacts
2 C/O staggered, silver contacts
product specific application
Dual stage
pressure switch type of operation
Detection of 2 single thresholds
electrical circuit type
Control circuit
scale type
Fixed differential
local display
Without
maximum permissible accidental pressure
45 bar
destruction pressure
90 bar
pressure actuator
Diaphragm
materials in contact with fluid
Brass
FPM, FKM
enclosure material
Zinc alloy
[In] rated current
3 A, B300, AC-15 (Ue = 120 V) conforming to EN/IEC 60947-5-1
1.5 A, B300, AC-15 (Ue = 240 V) conforming to EN/IEC 60947-5-1
0.1 A, R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1
Complementary
spread between 2 stages
1.24…9.55 bar
natural differential at low setting
0.7 bar
natural differential at high setting
1.3 bar
maximum permissible pressure - per cycle
25 bar
terminal block type
8 terminals
maximum operating rate
120 cyc/mn
repeat accuracy
2 %
[Ui] rated insulation voltage
300 V conforming to UL 508
500 V conforming to EN/IEC 60947-1
300 V conforming to CSA C22.2 No 14
[Uimp] rated impulse withstand voltage
6 kV EN/IEC 60947-1
maximum resistance across terminals
25 mOhm conforming to IEC 255-7 category 3
25 mOhm conforming to NF C 93-050 method A
short-circuit protection
10 A cartridge fuse, type gG (gl)
mechanical durability
5000000 cycles
setting
External
height
113 mm
depth
85 mm
width
46 mm
net weight
0.705 kg
Environment
standards
UL 508
EN/IEC 60947-5-1
CSA C22.2 No 14
CE
product certifications
CSA
UL
EAC
protective treatment
TC standard version
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…70 °C
operating position
Any position
vibration resistance
4 gn conforming to IEC 60068-2-6 (f = 30…500 Hz)
shock resistance
50 gn conforming to IEC 60068-2-27
electrical shock protection class
Class I conforming to IEC 1140
Class I conforming to IEC 536
Class I conforming to NF C 20-030
IP degree of protection
IP66 conforming to EN/IEC 60529
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Contractual warranty
Warranty
18 months
