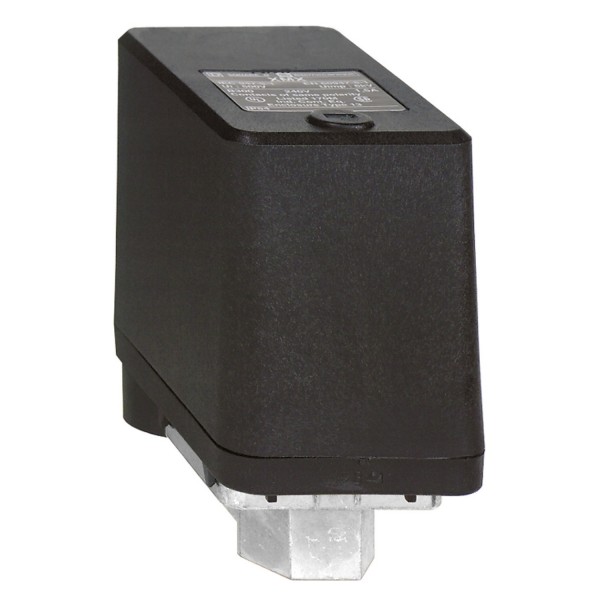

pressure switch XMX 6 bar - adjustable scale 2 thresholds

Details

Main
range of product	OsiSense XM
pressure sensor type	Electromechanical pressure sensor
pressure sensor name	XMX
pressure sensor size	6 bar
contacts type and composition	1 C/O snap action
controlled fluid	Air 0…70 °C) Fresh water 0…70 °C) Sea water 0…70 °C)
fluid connection type	G 1/4 (female) ISO 228
cable entry	2 entries tapped for Pg 13.5 cable gland NF C 68-300
electrical connection	Screw-clamp terminals 1 x 1...2 x 2.5 mm²
electrical circuit type	Control circuit
[In] rated current	3 A (Ue = 120 V), AC-15, B300 1,5 A (Ue = 240 V), AC-15, B300 0,1 A (Ue = 250 V), DC-13, R300
setting	Internal
colour of cover	Black opaque
pressure switch type of operation	Regulation between 2 thresholds
scale type	Fixed differential
local display	Without
enclosure material	PC impregnated with Lexan 500R
adjustable range of switching point on rising pressure	1…6 bar
adjustable range of switching point on falling pressure	0,2…4,8 bar
pressure actuator	Diaphragm
possible differential minimum at high setting	1,2 bar
possible differential minimum at low setting	0,8 bar
destruction pressure	30 bar
materials in contact with fluid	Canvas covered nitrile Chromated zinc alloy
maximum permissible accidental pressure	13,5 bar

Complementary
height	106 mm
width	57 mm
depth	97,5 mm
operating position	Any position
maximum permissible pressure - per cycle	7,5 bar
short-circuit protection	10 A cartridge fuse gG (gl)
maximum operating rate	10 cyc/mn
[Ui] rated insulation voltage	500 V EN/IEC 60947-1
[Uimp] rated impulse withstand voltage	6 kV EN/IEC 60947-1
electrical durability	1000000 cycles, 50/60 Hz, AC-15, 240 V / 3 A 10 A
mechanical durability	1000000 cycles
repeat accuracy	3,5 %
net weight	0,43 kg

Environment
standards	CE EN/IEC 60947-5-1
product certifications	CSA UL CCC
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…70 °C
protective treatment	TC
electrical shock protection class	Class I IEC 536
IP degree of protection	IP54 EN/IEC 60529

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil

Contractual warranty
Garantii	18 months
