Details
Characteristics

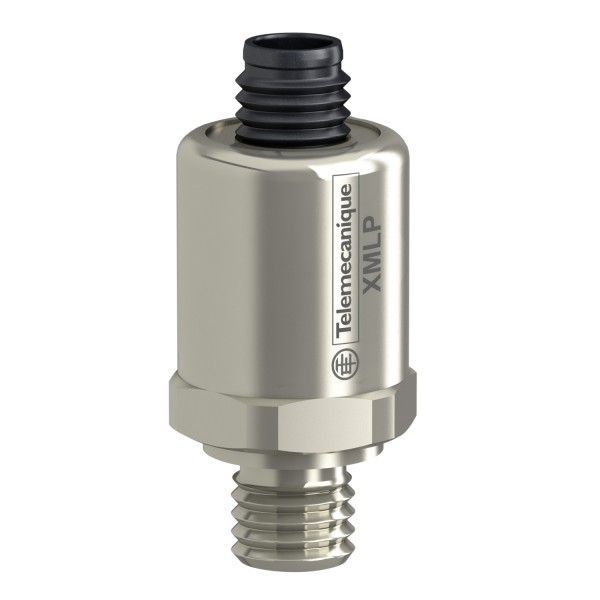

| range of product | OsiSense XM | |
|---|---|---|
| product or component type | Electronic pressure sensors | |
| pressure sensor type | Pressure transmitter | |
| pressure sensor name | XMLP | |
| electrical circuit type | Control circuit | |
| pressure sensor size | 160 bar | |
| local display | Without | |
| controlled fluid | Air (-30…135 °C)Fresh water (0…135 °C)Hydraulic oil (-30…135 °C)Gas (-30…135 °C)Refrigeration fluid (-30…135 °C) | |
| fluid connection type | G 1/4A (male) conforming to DIN 3852-E | |
| electrical connection | 1 male connector M12 4 pins | |
| [Us] rated supply voltage | 12...24 V DC SELV (voltage limits: 7…33 V) | |
| current consumption | < 23 mA | |
| type of output signal | Analogue | |
| analogue output function | 4...20 mA, 2-wire | |
| quantity per set | Set of 1 | |
| type of packing | Individual |
| pressure setting range | 0…160 bar | |
|---|---|---|
| maximum permissible accidental pressure | 480 bar | |
| destruction pressure | 960 bar | |
| materials in contact with fluid | Stainless steel AISI 316LFluorocarbon FPM | |
| operating position | Any position | |
| protection type | Reverse polarityLoad short-circuit | |
| electromagnetic compatibility | Electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 8 kV air, 4 kV contact1.2/50 µs shock waves immunity test conforming to EN/IEC 61000-4-5 1 kV 42 OhmImmunity to magnetic fields conforming to EN/IEC 61000-4-8 100 A/m 50 HzElectrical fast transient/burst immunity test conforming to EN/IEC 61000-4-4 4 kVSusceptibility to electromagnetic fields conforming to EN/IEC 61000-4-3 10 V/m 80...3000 MHzRadiated RF fields conforming to EN/IEC 61000-4-6 10 V 0.01...80 MHz | |
| [Uimp] rated impulse withstand voltage | 0.5 kV | |
| response time on output | <= 2 ms 10...90 % of full scale | |
| measurement accuracy | +/- 0.5 % of the measuring range | |
| Resolution | 0.1 % of the measuring range | |
| drift of the sensitivity | +/- 0.02 % of measuring range/°K | |
| drift of the zero point | +/- 0.02 % of measuring range/°K | |
| mechanical durability | 10000000 cycles | |
| net weight | 0.094 kg | |
| diameter | 26 mm | |
| length | 38.1 mm |
| standards | EN/IEC 61326-2-3NSF ANSI 61 | |
|---|---|---|
| product certifications | CECULusRCMEAC | |
| protective treatment | TC | |
| ambient air temperature for operation | -30…85 °C | |
| ambient air temperature for storage | -50…100 °C | |
| vibration resistance | 20 gn (f = 15…2000 Hz) conforming to EN/IEC 60068-2-6 | |
| shock resistance | 100 gn for 11 ms conforming to EN/IEC 60068-2-27 | |
| IP degree of protection | IP65 conforming to EN/IEC 60529IP67 conforming to EN/IEC 60529IP69K conforming to EN/IEC 60529 |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| Environmental Disclosure |
