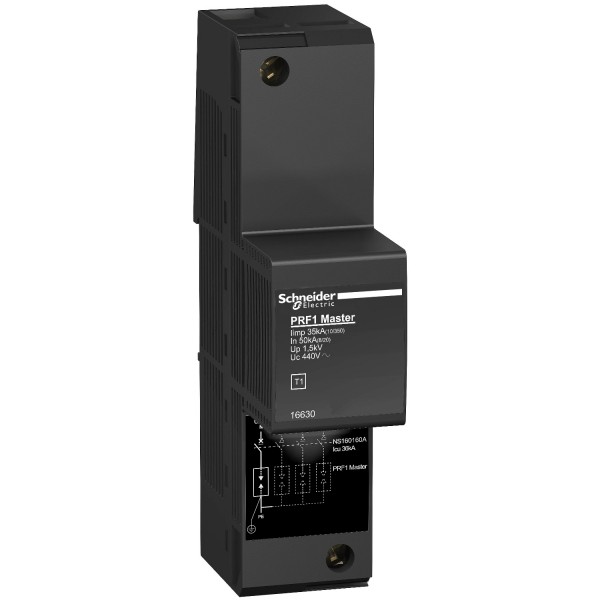

PRF1 master modular surge arrester - 1 pole - 440V

Ülevaaded: 0

Tootekood: 16630

Quick Overview

Saadavus: Tellimisel

359,60 € (ilma KM-ta)

Details

Main
range of product
Multi 9
product name
Multi 9 PRF1
product or component type
Surge arrester
device short name
PRF1
device application
Distribution
poles description
1P
remote signalling
Without
surge arrester type
Electrical distribution network
earthing system
IT
Complementary
surge arrester class type
Type 1
surge arrester technology
Spark gap
[Ue] rated operational voltage
230 V AC +/- 10 %)50/60 Hz
[In] nominal discharge current
50 kA
[Iimp] impulse current
Common mode 35 kA L/PE 17,5 A.s
[Uc] maximum continuous operating voltage
Common mode 440 V L/PE
maximum [Up] voltage protection level
Common mode <1,5 kV type 1 L/PE
[If] follow current
50 kA common mode L/PE
disconnector device type
Associated circuit breaker Compact NSX160F 160 A C - Icu 36 kA
Associated circuit breaker Compact NSX160N 160 A C - Icu 50 kA
Associated circuit breaker Compact NSX160B 160 A C - Icu 10 kA
Associated circuit breaker Compact NSX160B 160 A C - Icu 15 kA
Associated circuit breaker Compact NSX160B 160 A C - Icu 25 kA
mounting mode
Clip-on
mounting support
DIN rail
9 mm pitches
4
height
151,5 mm
width
36 mm
depth
81 mm
colour
Anthracite grey RAL 7016)
response time
<= 1 µs
connections - terminals
Tunnel type terminal top or bottom) 10…50 mm² rigid
Tunnel type terminal top or bottom) 10…35 mm² flexible
tightening torque
2,5 N.m
Environment
standards
EN 61643-11
IEC 61643-11
product certifications
CE
IP degree of protection
On front face IP40 IEC 60529
On terminal IP20 IEC 60529
IK degree of protection
IK05 IEC 62262
relative humidity
5…95 %
ambient air temperature for operation
-25…60 °C
ambient air temperature for storage
-40…85 °C
Offer Sustainability
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
