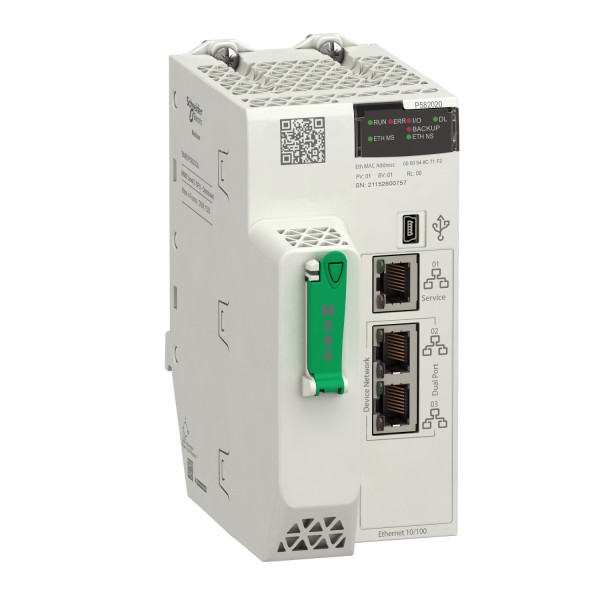

processor module M580 - Level 2 - Distributed Harsh

Product was successfully added to your shopping cart.

processor module M580 - Level 2 - Distributed Harsh

Tootekood: BMEP582020H

Quick Overview

Saadavus: Tellimisel

4 628,68 € (ilma KM-ta)

Qty:

Details

Main
range of product	Modicon M580
product or component type	Processor module
product specific application	For severe environments

Complementary
number of racks	4
Local I/O processor capacity (discrete)	2048 I/O
Local I/O processor capacity (analog)	512 I/O
Number of application specific channel (local rack)	72
application specific I/O	Accurate time stamping Counter SSI encoder HART Serial link Motion control
checks	Process control
control channels	Programmable loops
integrated connection type	1 Ethernet TCP/IP service port 2 Ethernet TCP/IP device network USB type mini B
number of distributed equipment	128
communication module processor capacity	2 Ethernet communication module 8 AS-Interface module
communication service	DIO scanner
memory description	Expandable flash, 4 GB data storage Integrated RAM, 10 kB system memory Integrated RAM, 8 MB program Integrated RAM, 768 kB data
application structure	2 auxiliary tasks 64 event tasks 1 cyclic/periodic master task 1 periodic fast task
number of instructions per ms	7.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 10 Kinst/ms 100 % Boolean
current consumption	270 mA 24 V DC
MTBF reliability	600000 H
marking	CE

Environment
vibration resistance	3 gn
shock resistance	30 gn
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C
operating altitude	0...2000 m 2000...5000 m with derating factor
relative humidity	5…95 % 55 °C without condensation
IP degree of protection	IP20
directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2012/19/EU - WEEE directive
protective treatment	Conformal coating
environmental characteristic	Gas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2
supply	Internal power supply via rack
status LED	Processor running (RUN) 1 LED green) Processor or system fault (ERR) 1 LED red) I/O module fault (I/O) 1 LED red) Download in progress (DL) 1 LED green) Memory card or CPU flash fault (BACKUP) 1 LED red) ETH MS (Ethernet port configuration status) 1 LED green/red) Eth NS (Ethernet network status) 1 LED green/red)
net weight	0,849 kg

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
