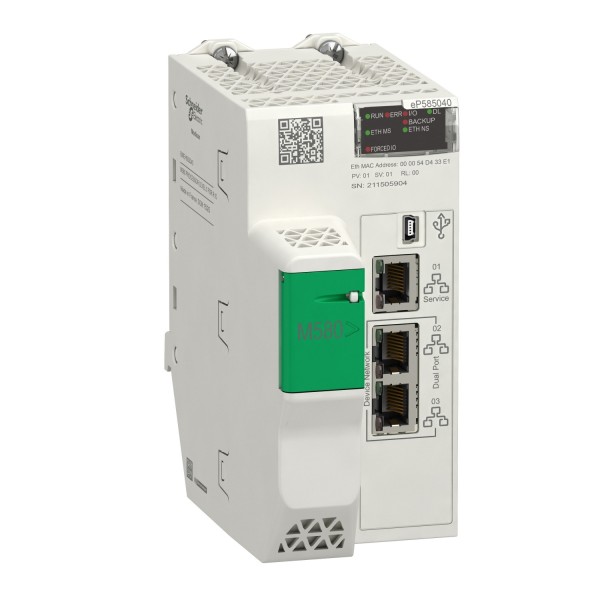

processor module M580 - Level 5 - Remote

Product was successfully added to your shopping cart.

processor module M580 - Level 5 - Remote

Tootekood: BMEP585040

Quick Overview

Saadavus: Tellimisel

11 633,86 € (ilma KM-ta)

Qty:

Details

Main
range of product	Modicon M580
product or component type	Processor module

Complementary
number of racks	8
Local I/O processor capacity (discrete)	5120 I/O
Local I/O processor capacity (analog)	1280 I/O
Number of application specific channel (local rack)	180
application specific I/O	Counter SSI encoder Motion control Serial link HART Accurate time stamping
checks	Process control
control channels	Programmable loops
integrated connection type	1 Ethernet TCP/IP service port 2 Ethernet TCP/IP device network USB type mini B
number of remote I/O station	31 - 2 remote drop
number of distributed equipment	64
communication module processor capacity	8 AS-Interface module 6 Ethernet communication module
communication service	DIO scanner RIO scanner
memory description	Expandable flash, 4 GB data storage Integrated RAM, 10 kB system memory Integrated RAM, 24 MB program Integrated RAM, 4096 kB data
application structure	1 periodic fast task 128 event tasks 1 cyclic/periodic master task 2 auxiliary tasks
number of instructions per ms	40 Kinst/ms 100 % Boolean 60 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
current consumption	295 mA 24 V DC
MTBF reliability	600000 H
marking	CE

Environment
vibration resistance	3 gn
shock resistance	30 gn
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-40…85 °C
operating altitude	0...2000 m 2000...5000 m with derating factor
relative humidity	5…95 % 55 °C without condensation
IP degree of protection	IP20
directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2012/19/EU - WEEE directive
supply	Internal power supply via rack
status LED	Processor running (RUN) 1 LED green) Processor or system fault (ERR) 1 LED red) I/O module fault (I/O) 1 LED red) Download in progress (DL) 1 LED green) Memory card or CPU flash fault (BACKUP) 1 LED red) ETH MS (Ethernet port configuration status) 1 LED green/red) Eth NS (Ethernet network status) 1 LED green/red) I/O values overrided by user (FORCED IO) 1 LED green)
net weight	0,849 kg

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
