programmable receiver - 4 PNP - 200 mA - 24 V DC - 2 pusbuttons - 6 LEDs

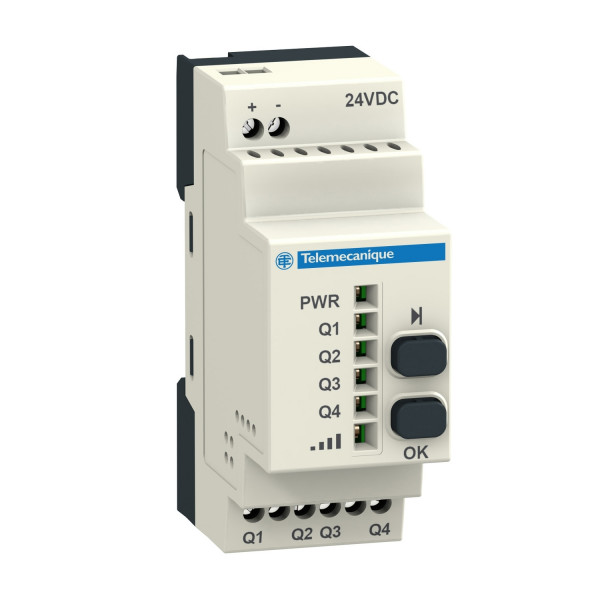

Programmable receiver

Interface to PLC

Radio transmitter XZBWE

Receiver unit for remote sensor

ZigBee: <2

0.8 A at 24 V DC

Transistor PNP

4 PNP

0.5 s (tolerance: - 15...15 %)

<= 400 ms

200 mA DC

10 mA

24 V DC - 15...20 %

<2 V (nominal output current: 200 mA)

Zigbee green power at 2.4 GHz

100 m in free field
25 m in a metal enclosure

< 30 ms after sensor change

2 per receiver

DC-13 conforming to EN/IEC 60947-5-1

26 W DC

4.8 W (per output)

1 A fuse type fast blow

Any position without

1 conductor cable 0.14…2.5 mm² AWG 26...AWG 14 solid without cable end conforming to IEC 60947-1
2 conductors cable 0.14…1.5 mm² AWG 26...AWG 16 solid without cable end conforming to IEC 60947-1
1 conductor cable 0.14…4 mm² AWG 26...AWG 12 flexible with cable end conforming to IEC 60947-1
2 conductors cable 0.14…1.5 mm² AWG 26...AWG 16 flexible with cable end conforming to IEC 60947-1

0.5…1 N.m conforming to EN/IEC 60947-1

Self-extinguishing plastic

1 LED green for power ON
1 LED green and yellow for reception signal
4 LEDs green for output active

35 mm symmetrical DIN rail conforming to EN/IEC 60715
Mounting plate

1 kV 50 Hz conforming to EN/IEC 60947-5-1

0.8 kV

36 mm

108 mm

75 mm

0.13 kg

CE

0.5 kV differential mode conforming to IEC 61000-4-5
1 kV common mode conforming to IEC 61000-4-5

EN/IEC 60947-5-1
EN/IEC 60947-1

-40…70 °C

90 % at -20…55 °C, without condensation conforming to ETSI EN 300 328

+/- 7.5 mm (f= 5…14 Hz) conforming to IEC 60068-2-6
2 gn (f= 8…150 Hz) conforming to IEC 60068-2-6

10 gn (duration = 16 ms) for 6000 shocks conforming to IEC 60068-2-27

IP20 (casing) conforming to IEC 60529
IP20 (terminals) conforming to IEC 60529

2 conforming to IEC 60664-1

III conforming to IEC 60664-1

> 500 MOhm at 500 V DC conforming to NF C 20-030

60 V conforming to IEC 60664-1

Immunity for industrial environments conforming to EN/IEC 61000-6-2
Conducted and radiated emissions class B conforming to CISPR 22
Electrostatic discharge immunity test 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
Electrostatic discharge immunity test 6 kV on contact (on metal parts) conforming to IEC 61000-4-2
Susceptibility to electromagnetic fields 10 V/m, 80 MHz...1 GHz at 3 m conforming to IEC 61000-4-3
Susceptibility to electromagnetic fields 3 V/m, 1.4 MHz…2 GHz at 3 m conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test 2 kV power supply wires conforming to IEC 61000-4-4
Conducted RF disturbances 10 V conforming to IEC 61000-4-6
Radiated emission conforming to ETSI EN 301 489-17
Conducted emission conforming to ETSI EN 301 489-17
Radiated emission conforming to ETSI EN 300 328
Electrical fast transient/burst immunity test 1 kV PNP output wires conforming to IEC 61000-4-4
1.2/50 µs shock waves immunity test 0.5 kV differential mode conforming to IEC 61000-4-5
1.2/50 µs shock waves immunity test 1 kV common mode conforming to IEC 61000-4-5
Immunity to microbreaks and voltage drops 7 ms conforming to IEC 61000-4-11

Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration

Yes
