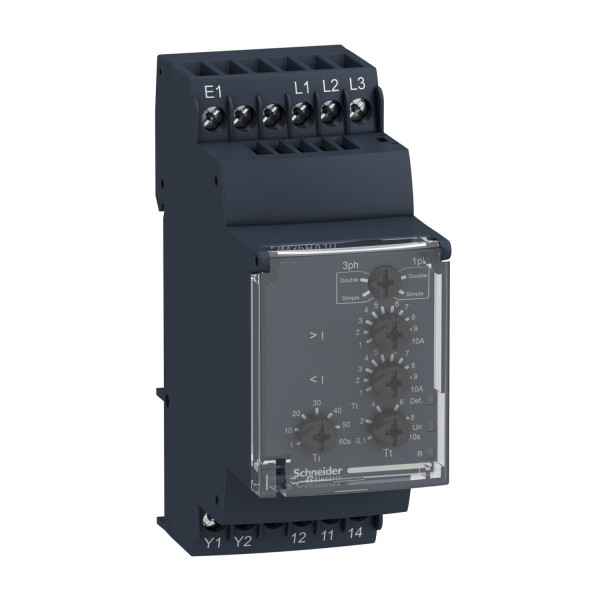

pump control relay RM35-BA - range 1..10 A

Ülevaaded: 0

Tootekood: RM35BA10

Quick Overview

Saadavus: Tellimisel

117,85 € (ilma KM-ta)

Details

Main
range of product
Zelio Control
product or component type
Modular measurement and control relays
relay type
Pump control relays
product specific application
For 3-phase and single-phase pump
relay name
RM35BA
relay monitored parameters
Overcurrent and undercurrent control
Phase sequence on 3-phase supply
Phase failure on 3-phase supply
time delay type
Adjustable 1...60 s, +/- 10 % Ti on energisation
Fixed 0.3 s reset on terminal Y2
Adjustable 0.1...10 s, +/- 10 % Tt on crossing the threshold
switching capacity in VA
1250 VA
minimum switching current
10 mA 5 V DC
maximum switching current
5 A AC/DC
maximum power consumption in VA
5 VA AC
measurement range
1...10 A AC
utilisation category
AC-12 IEC 60947-5-1
AC-13 IEC 60947-5-1
AC-14 IEC 60947-5-1
AC-15 IEC 60947-5-1
DC-12 IEC 60947-5-1
DC-13 IEC 60947-5-1
Complementary
reset time
2000 ms
maximum switching voltage
250 V AC/DC
[Un] rated nominal voltage
208...480 V AC 3 phases
230 V AC single phase
[Un] rated nominal voltage
208...480 V AC 3 phases
230 V AC 1 phase
supply voltage limits
183…528 V AC
operating voltage tolerance
- 15 % + 10 % Un
resistance across terminals
0,01 Ohm E1-L2 terminals
width
35 mm
output contacts
1 C/O
nominal output current
5 A
maximum measuring cycle
140 ms as true rms value
delay at power up
0,5 s
hysteresis
5 % threshold
measurement accuracy
+/- 10 % of the full scale value
repeat accuracy
+/- 1 % input and measurement circuit
+/- 1 % time delay
measurement error
1 % by volt over the whole range
+/- 0.05 %/°C
response time
< 300 ms in the event of a fault)
overload input current
11 A permanent at 25 °C E1-L2 terminals
50 A non repetitive < 1 s at 25 °C E1-L2 terminals
marking
CE : EMC 89/336/EEC
CE : 73/23/EEC
overvoltage category
III IEC 60664-1
insulation resistance
> 500 MOhm 500 V DC between supply and relay output 60255-5
> 500 MOhm 500 V DC between measurement and relay output 60664-1
> 1 MOhm 500 V DC between supply and measurement 60255-5
> 500 MOhm 500 V DC between supply and relay output 60664-1
> 500 MOhm 500 V DC between measurement and relay output 60255-5
> 1 MOhm 500 V DC between supply and measurement 60664-1
[Ui] rated insulation voltage
400 V IEC 60664-1
supply frequency
50/60 Hz +/- 10 %
operating position
Any position
connections - terminals
Screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end
Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end
Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end
Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
tightening torque
0,6…1 N.m IEC 60947-1
housing material
Self-extinguishing plastic
status LED
1 LED green power ON
1 LED yellow fault
1 LED yellow relay ON
mounting support
35 mm symmetrical DIN rail EN/IEC 60715
electrical durability
100000 cycles
mechanical durability
30000000 cycles
operating rate
<= 360 operations/hour full load
Environment
immunity to microbreaks
500 ms
electromagnetic compatibility
Emission standard for industrial environments EN/IEC 61000-6-4
Emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3
Immunity for industrial environments NF EN/IEC 61000-6-2
standards
EN/IEC 60255-6
product certifications
C-Tick
CSA
GOST
UL
GL
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-20…50 °C
relative humidity
95 % 55 °C IEC 60068-2-30
vibration resistance
0.35 mm 5…57,6 Hz)IEC 60068-2-6/IEC 60255-21-1
1 gn 57,6…150 Hz)IEC 60068-2-6/IEC 60255-21-1
shock resistance
15 gn 11 ms IEC 60255-21-1
IP degree of protection
IP20 IEC 60529 terminals)
IP30 IEC 60529 casing)
pollution degree
3 IEC 60664-1
dielectric strength
2 kV AC 50 Hz shock wave 4 kV)
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
