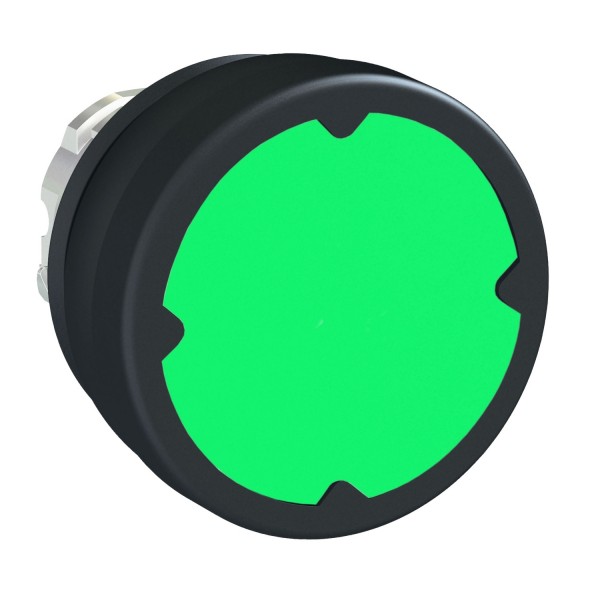

pushbutton head for harsh environment - green - without marking

Tootekood: ZB4BC380

Quick Overview

Saadavus: Tellimisel

22,18 € (ilma KM-ta)

Qty:

Details

Main
range of product	Harmony XB4
product or component type	Head for push-button
device short name	ZB4
bezel material	Chromium plated metal
head type	Standard
mounting diameter	22 mm
sale per indivisible quantity	1

Complementary
CAD overall width	37 mm
CAD overall height	18.5 mm
CAD overall depth	37 mm
net weight	0.036 kg
electrical shock protection class	Class I conforming to IEC 61140
shape of signaling unit head	Round
type of operator	spring return
operator profile	Green flush, unmarked
operator additional information	Vertical mounting Horizontal mounting
mechanical durability	10000000 cycles
vibration resistance	5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
main group	Harsh environment
group of product	Flush unmarked
cap/operator or lens colour	Green
marking	Unmarked
electrical composition code	C1 for <9 contacts using single blocks in front mounting C2 for <9 contacts using single and double blocks in front mounting C11 for <3 contacts using single blocks in front mounting C15 for <1 contacts using single blocks in front mounting
device presentation	Basic element

Environment
ambient air temperature for storage	-40…85 °C
ambient air temperature for operation	-40…70 °C
IP degree of protection	IP66 conforming to IEC 60529 IP69K IP67 IP69
NEMA degree of protection	NEMA 4 conforming to UL 508 NEMA 13 NEMA 12
resistance to high pressure washer	90 Pa at 82.5 °C
IK degree of protection	IK06 conforming to IEC 62262
standards	IEC 60947-5-1 IEC 60947-1 UL 508 CSA C22.2
product certifications	CSA CE UL

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information

Contractual warranty
Warranty	18 months
