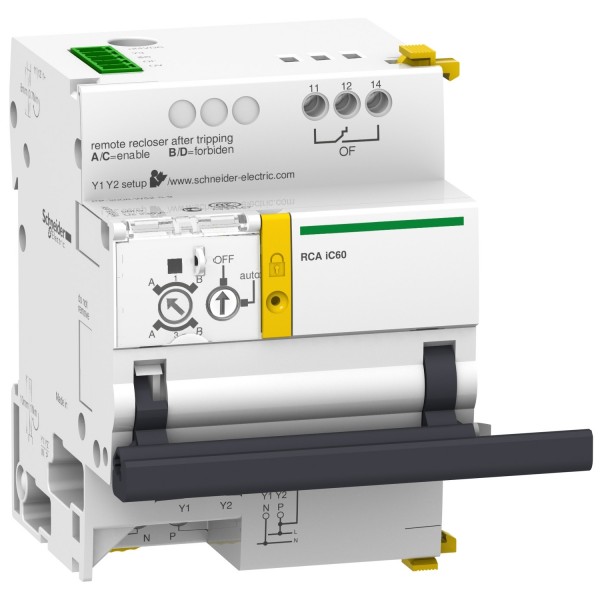

RCA remote ctrl aux with Ti24 for iC60 1P-1PN-2P

Details

Main
range of product	Acti 9
product or component type	Remote control auxiliary
device short name	RCA iC60
signal contacts composition	1 OF volt-free contacts 1 OF Ti24 1 SD Ti24
signalling circuit voltage	Volt-free contact 24...230 V 0.01…1 A AC Ti24 24 V 100 mA DC

Complementary
control type	Remote control impulse and maintained 230 V AC 50/60 Hz Remote control maintained Ti24 24 V DC
input current	5 mA impulse 5 mA maintained 5,5 mA maintained very low voltage
impulse duration	>= 200 ms control circuit
response time	< 500 ms
[Us] rated supply voltage	230 V AC 50/60 Hz
power consumption in W	1 W
[Ui] rated insulation voltage	400 V
[Uimp] rated impulse withstand voltage	6 kV
value of setting	Auto remote control authorized Off remote control inhibited Mode 1 central control Mode 3 central control and local override Position A reclosing authorized after tripping Position B reclosing inhibited after tripping
local signalling	Flashing green LED ready to operate Flashing orange LED not operational
mounting mode	Fixed
mounting support	DIN rail
comb busbar and distribution block compatibility	NO
9 mm pitches	7
height	93 mm
width	63 mm
depth	75,5 mm
net weight	400 g
colour	White
electrical durability	10000 cycles
mechanical durability	10000 cycles
provision for padlocking	Padlockable
wire stripping length	Power supply 10 mm bottom Input 10 mm bottom Output 8 mm top Ti24 interface 10 mm terminal
tightening torque	Auxiliary output 0,7 N.m Auxiliary supply 1 N.m Auxiliary input 1 N.m
physical interface	Ti24
range compatibility	Acti 9 iC60 Acti 9 iC65 iMDU voltage adaptor PLC
product compatibility	2P iC60 1P + N iC60 1P iC60 1P iC65 2P iC65 iMDU PLC

Environment
IP degree of protection	IP20IEC 60529 IP40 modular enclosure)IEC 60529
pollution degree	3 IEC 60947
overvoltage category	II
tropicalisation	2
relative humidity	93 % 40 °C
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-25…60 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
