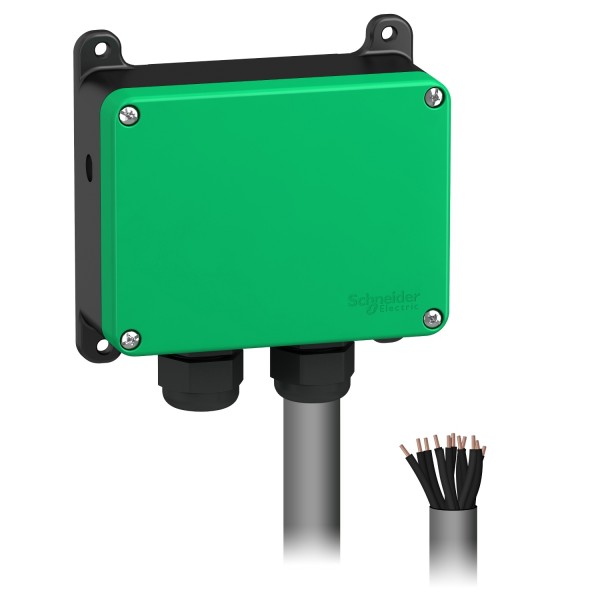

Receiver, Harmony eXLhoist compact, 10 relays outputs, pre-wired 1.5 m cable, 48...240 V AC

Details

Main
range of product	Harmony XAR
product or component type	Base station
device short name	ZARB
product specific application	Hoisting applications Material handling

Complementary
cable entry	Cable pre-wired
material	ABS + PC
[Us] rated supply voltage	48...240 V AC
provided equipment	Internal antenna
nominal output current	0.5 A at 48 V AC conforming to IEC 60947-5-1
number of relays	10
relay type	Motion relay outputs with 9 NO contact Auxiliary relay outputs with 1 NO contact
safety outputs	2 NC relay outputs
maximum switching current	90 mA AC
maximum switching voltage	240 V AC (+/- 20 %)
communication network type	Wireless: Zigbee
transmission frequency	2.4 GHz
maximum sensing distance	100 m in free field
fixing mode	4 holes
electrical durability	100000 cycles
mechanical durability	10000000 cycles
width	120 mm
height	117 mm
depth	51 mm
net weight	0.88 kg

Environment
IP degree of protection	IP66
radio agreement	FCC IC
relative humidity	0…97 %
ambient air temperature for operation	-20…55 °C
ambient air temperature for storage	-40…70 °C
product certifications	CE
environmental characteristic	RoHS compliant

Offer Sustainability
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
