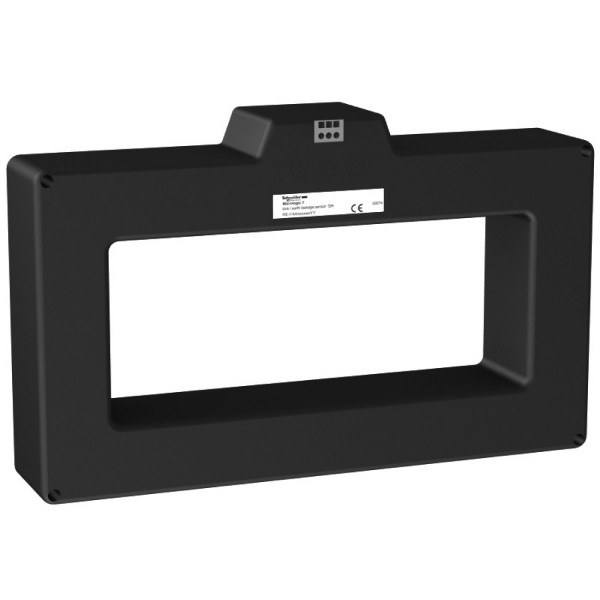

rectangular sensor L2 type, Vigirex, 470 mm X 160 mm, 1600 A

Ülevaaded: 0

Tootekood: 56054

Quick Overview

Saadavus: Tellimisel

3 024,22 € (ilma KM-ta)

Details

Main
range
Vigirex
product or component type
Earth leakage current sensor
device application
Equipment monitoring and control
range compatibility
Vigirex RH plug-in relay
[Ie] rated operational current
3200 A
Complementary
current sensor type
Rectangular sensor
transformer ratio
1/1000
[Icw] rated short-time withstand current
100 kA 0.5 s
residual short-circuit withstand current
85 kA / 0.5 s
overvoltage category
IV
[Uimp] rated impulse withstand voltage
12 kV
mounting mode
Fixed cables)
Fixed busbar)
connections - terminals
Screw connection 0,2…2,5 mm²
net weight
21,16 kg
height
Outside 281 mm
Inside 160 mm
width
Outside 572 mm
Inside 470 mm
height
281 mm
depth
Outside 72 mm
Inside 72 mm
width
572 mm
depth
72 mm
Environment
IP degree of protection
Connectors IP20
IP30
environmental characteristic
Exposure to damp heat not in service 25...55 °C, RH 95 %) 28 cycles IEC 60068-2-30
Salt mistKb/2 IEC 60068-2-52
Exposure to damp heat in servicecategory C2 48 hours IEC 60068-2-56
ambient air temperature for operation
-35…80 °C
ambient air temperature for storage
-55…100 °C
Offer Sustainability
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Contractual warranty
Garantii
18 months
