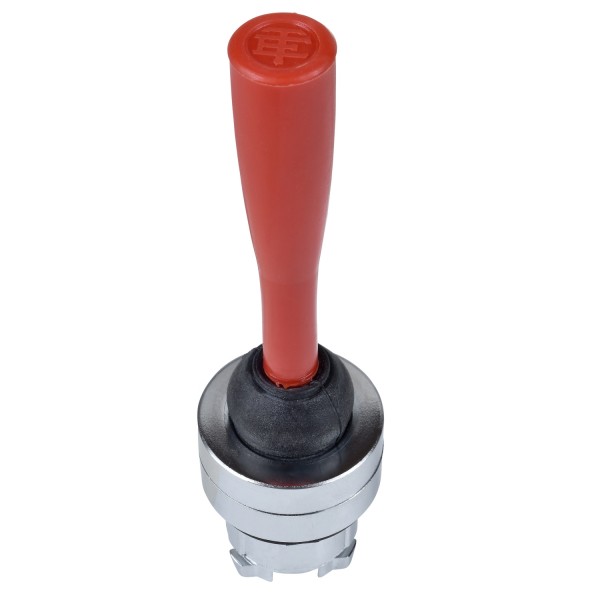

red joystick controller head Ø22 omnidirectional spring return

Product was successfully added to your shopping cart.

red joystick controller head Ø22 omnidirectional spring return

Tootekood: ZB4BB4

Quick Overview

Saadavus: Tellimisel

88,69 € (ilma KM-ta)

Qty:

Details

Main
range of product	Harmony XB4
product or component type	Head for joystick controller
device short name	ZB4
bezel material	Chromium plated metal
mounting diameter	22 mm
head type	Standard
sale per indivisible quantity	1
shape of signaling unit head	Round
type of operator	To zero position spring return
operator profile	Red 54 mm long operating shaft
operator direction information	Omnidirectional

Complementary
net weight	0.058 kg
resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
operator position information	All positions
mechanical durability	1000000 cycles
device presentation	Basic element

Environment
protective treatment	TH
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-25…70 °C
electrical shock protection class	Class I conforming to IEC 60536
IP degree of protection	IP66 conforming to IEC 60529
NEMA degree of protection	NEMA 13 NEMA 4X
IK degree of protection	IK03 conforming to IEC 50102
standards	EN/IEC 60947-5-5 CSA C22.2 No 14 EN/IEC 60947-5-4 EN/IEC 60947-1 EN/IEC 60947-5-1 UL 508 JIS C8201-5-1 JIS C8201-1
product certifications	DNV GL BV LROS (Lloyds register of shipping) UL listed RINA CSA
vibration resistance	5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information

Contractual warranty
Warranty	18 months
