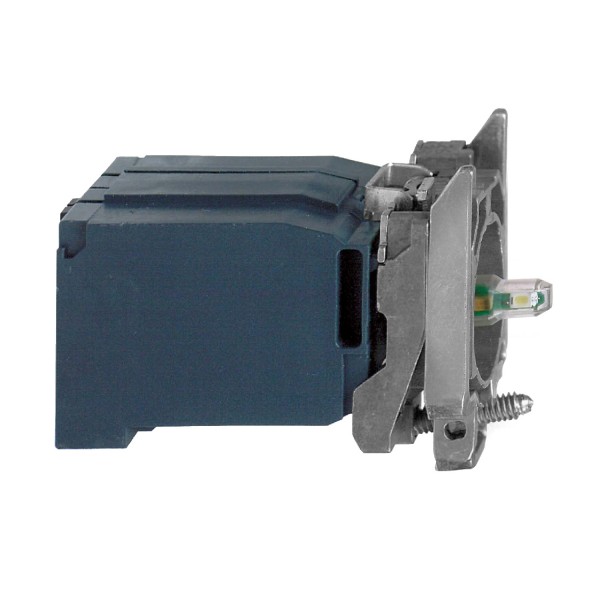

red light block with body/fixing collar with BA9s LED bulb 400V

Ülevaaded: 0

Tootekood: ZB4BV5D4

Quick Overview

Saadavus: Tellimisel

21,97 € (ilma KM-ta)

Details

Main
range of product
Harmony XB4
product or component type
Complete body/light block assembly
device short name
ZB4
fixing collar material
Zamak
sale per indivisible quantity
1
connections - terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end
light source
LED
bulb base
BA 9s
light block supply
Via integral transformer 1,2 VA 6 V
light source colour
Red
[Us] rated supply voltage
400 V AC 50/60 Hz
Complementary
CAD overall width
30 mm
CAD overall height
47 mm
CAD overall depth
60 mm
terminals description ISO n°1
(X1-X2)PL
net weight
0,134 kg
tightening torque
0,8…1,2 N.m EN 60947-1
shape of screw head
Cross Philips no 1
[Ui] rated insulation voltage
600 V 3)EN 60947-1
[Uimp] rated impulse withstand voltage
6 kV EN 60947-1
signalling type
Steady
mounting of block
Front mounting
electrical composition code
P4
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-40…70 °C
electrical shock protection class
Class I IEC 60536
IP degree of protection
IP20
standards
CSA C22.2 No 14
EN/IEC 60947-5-4
EN/IEC 60947-5-5
EN/IEC 60947-5-1
EN/IEC 60947-1
UL 508
JIS C8201-5-1
JIS C8201-1
product certifications
CSA
BV
GL
LROS (Lloyds register of shipping)
RINA
DNV
UL listed
vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
