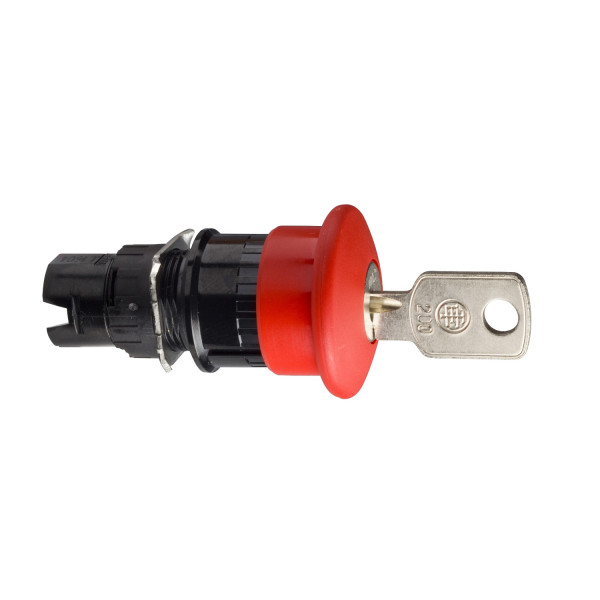

red Ø30 Emergency stop pushbutton head Ø16 trigger and latching key release

Ülevaaded: 0

Tootekood: ZB6AS934

Quick Overview

Saadavus: Tellimisel

22,12 € (ilma KM-ta)

Details

Main
range of product
Harmony XB6
product or component type
Head for emergency stop push-button
device short name
ZB6
bezel material
Plastic
mounting diameter
16 mm
sale per indivisible quantity
1
shape of signaling unit head
Round
type of operator
trigger action and mechanical latching
reset
Key release
operator profile
Red mushroom Ø 30 mm, unmarked
type of keylock
Ronis 200
Complementary
CAD overall width
30 mm
CAD overall height
30 mm
CAD overall depth
70 mm
net weight
0,05 kg
mechanical durability
100000 cycles
Environment
protective treatment
TC
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-25…70 °C
electrical shock protection class
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
NEMA degree of protection
NEMA 13 UL 50
NEMA 4 UL 50
NEMA 4X UL 50
NEMA 13 CSA C22.2 No 94
NEMA 4 CSA C22.2 No 94
NEMA 4X CSA C22.2 No 94
standards
JIS C8201-5-1
UL 508
EN/ISO 13850
JIS C 852
EN/IEC 60947-5-1
CSA C22.2 No 14
EN/IEC 60947-1
EN/IEC 60947-5-5
EN/IEC 60204-1
JIS C8201-1
product certifications
UL
CSA
GOST
CCC
vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6
5 gn 2…500 Hz)IEC 60068-2-6
shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
Contractual warranty
Garantii
18 months
