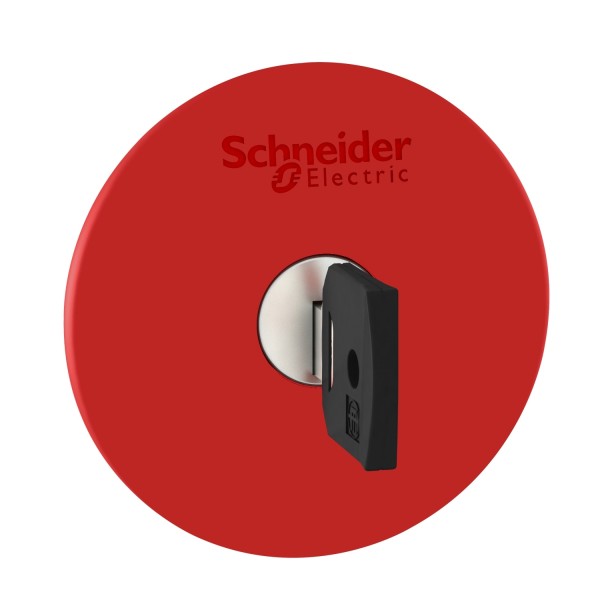

red Ø60 Emergency stop, switching off head Ø22 trigger and latching key release

Ülevaaded: 0

Tootekood: ZB5AS964K

Quick Overview

Saadavus: Tellimisel

75,93 € (ilma KM-ta)

Details

Main
range of product
Harmony XB5
product or component type
Head
product destination
Emergency stop push-button
device short name
ZB5
bezel material
Dark grey plastic
head type
Standard
mounting diameter
22 mm
sale per indivisible quantity
1
shape of signaling unit head
Round
type of operator
trigger action and mechanical latching
reset
Key release
operator profile
Red mushroom Ø 60 mm, unmarked
type of keylock
Special key
key withdrawal position
Center
Complementary
CAD overall width
60 mm
CAD overall height
60 mm
CAD overall depth
79 mm
net weight
0.092 kg
mechanical durability
300000 cycles
station name
XALD 1 cut-out
XALK 1 cut-out
electrical composition code
C7 for <4 contacts using single blocks in front mounting
C8 for <4 contacts using single and double blocks in front mounting
C11 for <3 contacts using single blocks in front mounting
C15 for <1 contacts using single blocks in front mounting
SF1 for <3 contacts using single blocks in front mounting
SR1 for <3 contacts using single blocks in rear mounting
C10 for <4 contacts using single and double blocks in front mounting
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-40…70 °C
overvoltage category
Class II conforming to IEC 60536
IP degree of protection
IP66 conforming to IEC 60529
IP67
IP69
IP69K
NEMA degree of protection
NEMA 13
NEMA 4X
resistance to high pressure washer
7000000 Pa at 55 °C, distance : 0.1 m
IK degree of protection
IK03 conforming to IEC 50102
standards
EN/IEC 60204-1
JIS C8201-5-1
GB 14048.5
IEC 60364-5-53
EN/IEC 60947-1
EN/IEC 60947-5-4
EN/IEC 60947-5-1
CSA C22.2 No 14
EN/IEC 60947-5-5
EN/ISO 13850
UL 508
JIS C8201-1
product certifications
RINA
LROS (Lloyds register of shipping)
GL
CSA
BV
UL listed
DNV
vibration resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Contractual warranty
Warranty
18 months
