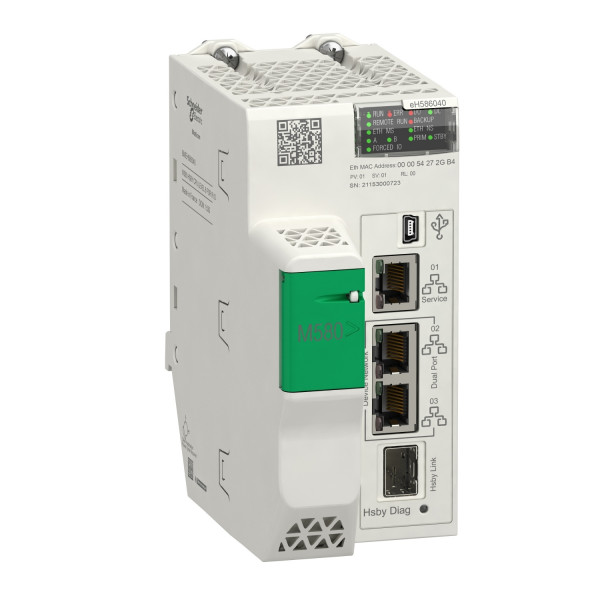

redundant HSBY processor module M580 - Level 6 - Remote

Ülevaaded: 0

Tootekood: BMEH586040

Quick Overview

Saadavus: Tellimisel

15 760,90 € (ilma KM-ta)

Details

Main
range of product
Modicon M580
product or component type
Redundant processor module
Complementary
number of racks
1
application specific I/O
Counter
SSI encoder
Serial link
HART
Accurate time stamping
Motion control
checks
Process control
control channels
Programmable loops
integrated connection type
1 Ethernet TCP/IP for service port
2 Ethernet TCP/IP for device network
USB type mini B
1 Ethernet for HSBY port
number of remote I/O station
31 - 2 rack(s) per X80 and Quantum drops
number of distributed equipment
64
communication module processor capacity
6 Ethernet communication module
24 AS-Interface module
communication service
DIO scanner
RIO scanner
memory description
Expandable flash, 4 GB for data storage
Integrated RAM, 10 kB for system memory
Integrated RAM, 64 MB for program and data
Integrated RAM, 4096 kB for HSBY data
application structure
1 cyclic/periodic master task
1 periodic fast task
number of instructions per ms
40 Kinst/ms 100 % Boolean
60 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
current consumption
295 mA at 24 V DC
MTBF reliability
600000 H
marking
CE
Environment
vibration resistance
3 gn
shock resistance
30 gn
ambient air temperature for operation
0…60 °C
ambient air temperature for storage
-40…85 °C
operating altitude
0...2000 m
2000...5000 m with derating factor
relative humidity
5…95 % at 55 °C without condensation
IP degree of protection
IP20
directives
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2012/19/EU - WEEE directive
standards
EN 61131-2
EN 61000-6-4
EN 61000-6-2
EN 61010-2-201
product certifications
CE
Merchant Navy
RCM
CSA
EAC
UL
supply
Internal power supply via rack
status LED
1 LED (green)processor running (RUN):
1 LED (red)processor or system fault (ERR):
1 LED (red)I/O module fault (I/O):
1 LED (green)download in progress (DL):
1 LED (red)memory card or CPU flash fault (BACKUP):
1 LED (green/red)ETH MS (Ethernet port configuration status):
1 LED (green/red)Eth NS (Ethernet network status):
1 LED (green)peer processor running (REMOTE RUN):
1 LED (green)processor ID set to A (A):
1 LED (green)processor ID set to B (B):
1 LED (green)processor acting as Primary (PRIM):
1 LED (green)processor acting as Standby (STBY):
1 LED (green)I/O values overrided by user (FORCED IO):
1 LED (green)Hot standby link status (Hsby Diag):
net weight
0.849 kg
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
