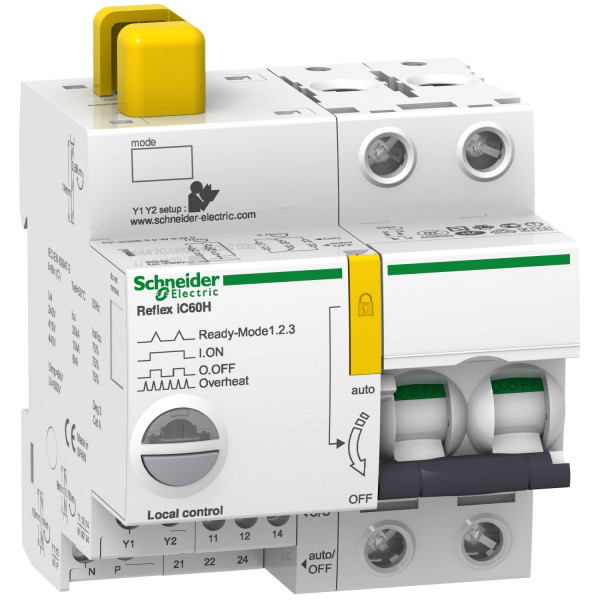

Reflex iC60H Ti24 10 A 2P curve D integrated control MCB

Tootekood: A9C66210

Quick Overview

Saadavus: Tellimisel

142,95 € (ilma KM-ta)

Details

Main
device application
Control
Distribution
range
Acti 9
product name
Reflex iC60
device short name
Reflex iC60H
product or component type
Integrated control circuit breaker
poles description
2P
number of protected poles
2
network type
AC
trip unit technology
Thermal-magnetic
curve code
D
Complementary
[In] rated current
10 A
network frequency
50/60 Hz
breaking capacity code
H
breaking capacity
30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
[Ui] rated insulation voltage
500 V AC
contact position indicator
Yes
control type
Remote control by continuous command
ON/OFF button
Toggle
Remote control by pulse
control signal type
Impulse
Maintained
Maintained very low voltage
local signalling
Red LED: fault
Green LED: device ON
Flashing LED: device overheat
Flashing LED: device tripped
Flashing LED: device ready
[Uc] control circuit voltage
230 V AC 50/60 Hz
24 V AC 50/60 Hz
48 V AC 50/60 Hz
24 V DC
48 V DC
[Us] rated supply voltage
230 V AC at 50/60 Hz
mounting mode
Fixed
mounting support
35 mm symmetrical DIN rail
9 mm pitches
9
height
84 mm
width
81 mm
depth
77 mm
colour
White
mechanical durability
50000 cycles
electrical durability
AC-1: 50000 cycles AC 50 Hz
provision for padlocking
Padlockable
locking options description
Padlock in OFF position
earth-leakage protection
Separate block
product compatibility
With PLC
Environment
IP degree of protection
IP20 conforming to IEC 60529
pollution degree
3
tropicalisation
2
relative humidity
93 % at 40 °C
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
