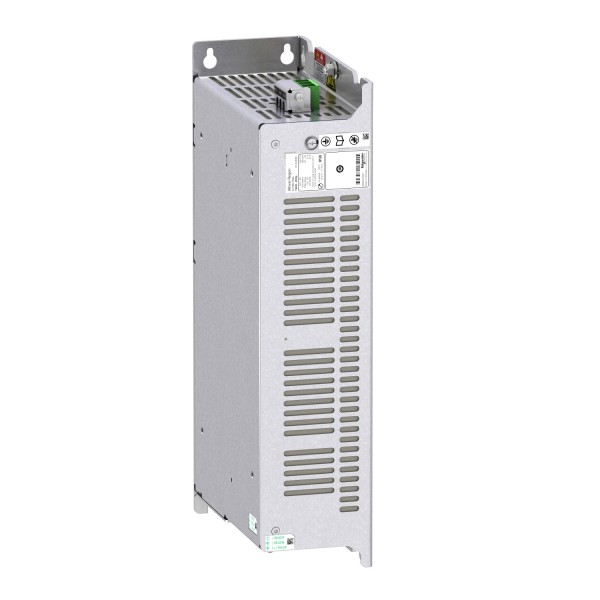

Regenerative unit - 15 kW - for Altivar variable speed drive

Details

Complementary
range compatibility	Altivar Machine ATV340 Altivar Machine ATV320 Altivar Process ATV900
fixing mode	By screws
[Us] rated supply voltage	380...500 V - 15...10 %
network number of phases	3 phases
network frequency	45...65 Hz
rated power	13.5 kW
DC bus operating voltage	456...778 V DC
DC bus voltage limits	300...880 V DC
input power	13.5 kW at 380...500 V DC for DC bus (continuous) 20.3 kW at 380...500 V DC for DC bus (transient for 60 s)
input current	31.8 A at 380 V DC for DC bus (continuous) 27.9 A at 500 V DC for DC bus (continuous) 43.1 A at 380 V DC for DC bus (transient for 60 s) 36.3 A at 500 V DC for DC bus (transient for 60 s)
output current	25.9 A at 380 V AC (continuous) 23.2 A at 500 V AC (continuous) 36.5 A at 380 V AC (transient for 60 s) 29.7 A at 500 V AC (transient for 60 s)
electrical connection	Control: removable screw terminal block: 0.5...1.5 mm², AWG 20...AWG 16 (bottom) Power supply: removable screw terminal block: 6 mm², AWG 8 (top) DC bus: removable screw terminal block: 6 mm², AWG 8 (bottom)
maximum voltage drop at rated load	3 %
operating position	Vertical or horizontal position
height	399 mm
width	105 mm
depth	235 mm
net weight	11.5 kg
type of cooling	Fan

Environment
environmental characteristic	Chemical pollution resistance class 3C3 conforming to EN/IEC 60721-3-3 Dust pollution resistance class 3S2 conforming to EN/IEC 60721-3-3
ambient air temperature for operation	-10…50 °C without 50…60 °C with derating factor
ambient air temperature for storage	-40…70 °C
operating altitude	<= 1000 m without 1000...3000 m with power derating 1 % per 100 m
pollution degree	2 conforming to EN/IEC 61800-5-1
IP degree of protection	IP20
standards	IEC 61800-3 IEC 61800-5-1
