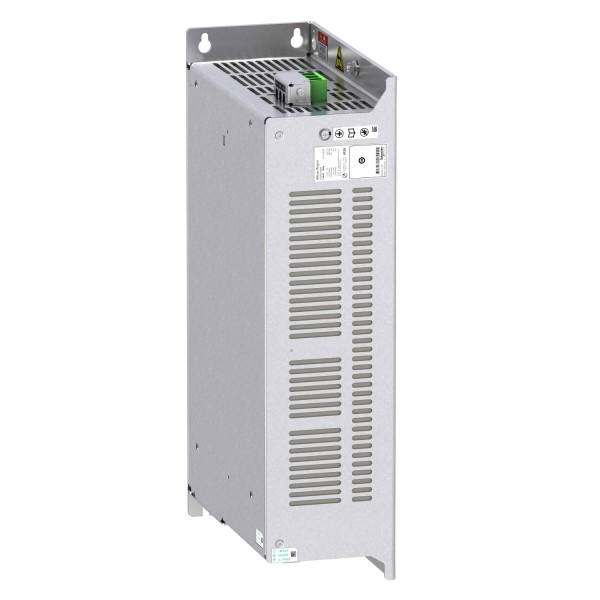

Regenerative unit - 7,5 kW - for Altivar variable speed drive

Details

Complementary
range compatibility	Altivar Machine ATV340 Altivar Process ATV900 Altivar Machine ATV320
fixing mode	By screws
[Us] rated supply voltage	380...500 V - 15...10 %
network number of phases	3 phases
network frequency	45...65 Hz
rated power	6,8 kW
DC bus operating voltage	456...778 V DC
DC bus voltage limits	300...880 V DC
input power	6,8 kW 380...500 V DC DC bus continuous) 10,2 kW 380...500 V DC DC bus transient for 60 s)
input current	16,5 A 380 V DC DC bus continuous) 14,5 A 500 V DC DC bus continuous) 22,9 A 380 V DC DC bus transient for 60 s) 19,1 A 500 V DC DC bus transient for 60 s)
output current	13.4 A 380 V AC continuous) 11.9 A 500 V AC continuous) 18.4 A 380 V AC transient for 60 s) 15.4 A 500 V AC transient for 60 s)
electrical connection	Control removable screw terminal block 0.5...1.5 mm², AWG 20...AWG 16 bottom) Power supply removable screw terminal block 2.5...4 mm², AWG 12...AWG 10 top) DC bus removable screw terminal block 2.5...4 mm², AWG 12...AWG 10 bottom)
maximum voltage drop at rated load	3 %
operating position	Vertical or horizontal position
height	337 mm
width	80 mm
depth	175 mm
net weight	6 kg
type of cooling	Fan

Environment
environmental characteristic	Chemical pollution resistance class 3C3 EN/IEC 60721-3-3 Dust pollution resistance class 3S2 EN/IEC 60721-3-3
ambient air temperature for operation	-10…50 °C without 50…60 °C with derating factor
ambient air temperature for storage	-40…70 °C
operating altitude	<= 1000 m without 1000...3000 m with power derating 1 % per 100 m
pollution degree	2 EN/IEC 61800-5-1
IP degree of protection	IP20
standards	IEC 61800-5-1 IEC 61800-3
