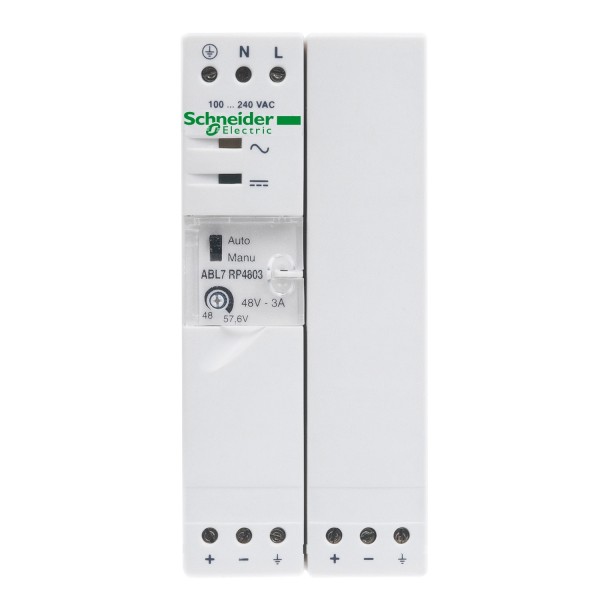

regulated SMPS - 1 or 2-phase - 100.240 V AC- 48 V - 2.5 A

Ülevaaded: 0

Tootekood: ABL7RP4803

Quick Overview

Saadavus: Ei saa enam tellida

199,84 € (ilma KM-ta)

Details

Main
range of product
Phaseo
product or component type
Power supply
power supply type
Regulated switch mode
Nominal input voltage
100...240 V AC phase to phase, terminal(s): L1-L2
100...240 V AC single phase, terminal(s): N-L1
110...220 V DC
rated power in W
120 W
output voltage
48 V DC
power supply output current
2.5 A
Complementary
Power Factor
0.98
efficiency
85 %
Output voltage adjustment
100...120 % adjustable
power dissipation in W
25.4 W
current consumption
1 A at 100 V
0.6 A at 240 V
Hold-up time
>= 20 ms at 100 V
>= 20 ms at 240 V
connections - terminals
For input connection: screw type terminals, connection capacity: 2 x 0.14...2 x 2.5 mm² AWG 26...AWG 14
For output connection: screw type terminals, connection capacity: 4 x 0.14...4 x 2.5 mm² AWG 26...AWG 14
For input ground connection: screw type terminals, connection capacity: 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14
For output ground connection: screw type terminals, connection capacity: 2 x 0.14...2 x 2.5 mm² AWG 26...AWG 14
status LED
1 LED (green)output voltage:
1 LED (orange)input voltage:
depth
120 mm
height
120 mm
width
54 mm
net weight
1 kg
output coupling
Series
Parallel
marking
CE
operating position
Vertical
Environment
standards
UL 508
CSA C22.2 No 60950-1
product certifications
CSA 22-2 No 950
EAC
RCM
KC
UL 508
TÜV
environmental characteristic
EMC conforming to EN 50081-1
EMC conforming to EN 50082-2
EMC conforming to EN/IEC 61000-6-2
Safety conforming to EN/IEC 60950
Safety conforming to IEC 61496-1-2
Safety conforming to SELV
operating altitude
2000 m
ambient air temperature for operation
0…50 °C (without)
50…60 °C (with derating factor)
ambient air temperature for storage
-25…70 °C
relative humidity
0…95 % without condensation or dripping water
overvoltage category
Class I conforming to VDE 0106-1
dielectric strength
3000 V between input and ground
3000 V between input and output
500 V between output and ground
500 V between outputs
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
Contractual warranty
Warranty
18 months
