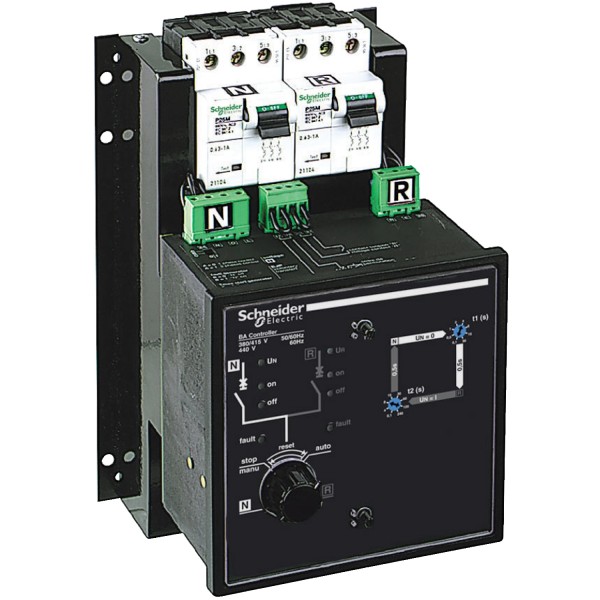

remote control source changeover, Transferpact, ACP plate and UA controller, 220 VAC to 240 VAC 50/60 Hz

Ülevaaded: 0

Tootekood: 29472

Quick Overview

Saadavus: Tellimisel

1 033,53 € (ilma KM-ta)

Details

Main
range of product
NSX100...250
Compact NS100...630
Masterpact NW
Masterpact NT
NSX400...630
Compact NS630b...1600
product or component type
Interface and control unit
accessory / separate part category
Interlocking accessory
range compatibility
Compact NS circuit breaker
Compact NSX circuit breaker
MasterPact NT circuit breaker
Masterpact NW circuit breaker
device short name
ACP + UA
[Us] rated supply voltage
220...240 V AC 50/60 Hz
Complementary
operating mode
Automatic operation
Forced operation on normal source
Stop (both normal and replacement source off)
Forced operation on replacement source
interlocked device
Masterpact NT
NSX400...630
Masterpact NW
NSX100...250
Compact NS100...630
Compact NS630b...1600
selection modes
Circuit breaker on R
Circuit breaker on N
test function
By pressing the test button on the front of the controller
complementary function
Voluntary transfer to replacement source (e.g. energy management commands)
Forced normal source if replacement source not operational during peak-tariff
Selection of type of normal source (single-phase or three-phase)
Setting of maximum startup time for the replacement source
Additional contact: transfer to replacement source only if contact is closed
local signalling
On
Off
Fault trip
input type
Contacts customer voluntary order to transfer to source R
output type
Contacts customer indication of operation in automatic or stop mode
[Ith] conventional free air thermal current
8 A
[Ie] rated operational current
AC-12 4 A AC 440 V
AC-12 5 A AC 380/415 V
AC-12 8 A AC 110 V
AC-12 8 A AC 220/240 V
AC-12 8 A AC 24 V
AC-12 8 A AC 48 V
AC-13 6 A AC 110 V
AC-13 6 A AC 220/240 V
AC-13 7 A AC 24 V
AC-13 7 A AC 48 V
AC-14 4 A AC 110 V
AC-14 4 A AC 220/240 V
AC-14 5 A AC 24 V
AC-14 5 A AC 48 V
AC-15 3 A AC 220/240 V
AC-15 4 A AC 110 V
AC-15 5 A AC 24 V
AC-15 5 A AC 48 V
DC-12 0,4 A DC 250 V
DC-12 0,6 A DC 110 V
DC-12 2 A DC 48 V
DC-12 8 A DC 24 V
DC-13 2 A 24 V
product compatibility
Compact NS630b...1600
Compact NSX100...250
Compact NSX400...630
Environment
standards
IEC 947-5-1
IP degree of protection
Connectors IP20 EN 60529
Front IP40 EN 60529
Side IP30 EN 60529
IK degree of protection
Front IK07 EN 50102
Offer Sustainability
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Contractual warranty
Garantii
18 months
