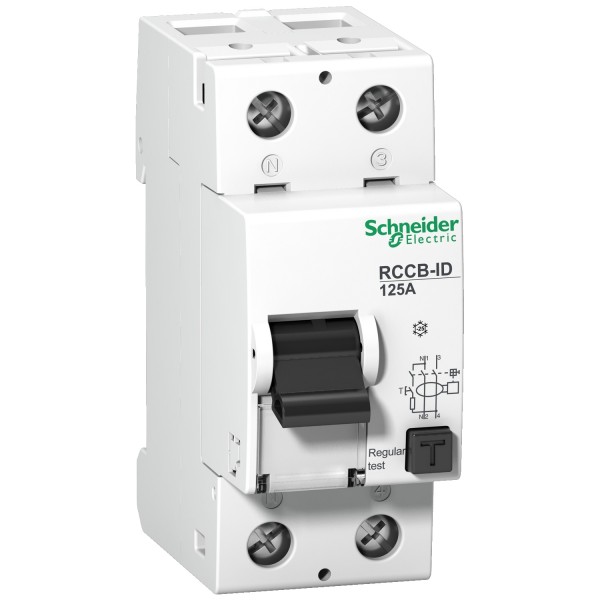

residual current circuit breaker ID Fi - 2 poles - 125 A - 30mA

Details

Main
range	Acti 9
product name	Acti 9 RCCB-ID
product or component type	Residual current circuit breaker (RCCB)
device short name	RCCB-ID
poles description	2P
neutral position	Left
[In] rated current	125 A
network type	AC
earth-leakage sensitivity	30 mA
earth-leakage protection time delay	Instantaneous
earth-leakage protection class	Type AC
rated breaking and making capacity	Im = 1250 A 230 V IEC 61008
rated conditional short-circuit current	Inc 10 kA 125 A

Complementary
device location in system	Outgoer
network frequency	50/60 Hz
[Ue] rated operational voltage	230 V AC 50 Hz IEC 61008
residual current tripping technology	Electromechanical
[Ui] rated insulation voltage	440 V AC 50 Hz IEC 61008-1
[Uimp] rated impulse withstand voltage	4 kVIEC 61008-1
control type	Toggle
mounting mode	Fixed
mounting support	35 mm symmetrical DIN rail
9 mm pitches	4
height	86 mm
width	36 mm
depth	76 mm
net weight	230 g
colour	Grey
mechanical durability	5000 cycles
electrical durability	2000 cycles
provision for padlocking	Padlockable
connections - terminals	Tunnel type terminals2 1,5…16 mm² flexible Tunnel type terminals2 1,5…16 mm² rigid Tunnel type terminals1 1,5…50 mm² rigid Tunnel type terminals1 1,5…35 mm² flexible Tunnel type terminals1 1,5…35 mm² flexible with ferrule Tunnel type terminals2 1,5…16 mm² flexible with ferrule
wire stripping length	11 mm
tightening torque	3 N.m

Environment
standards	IEC 60947-3 IEC 61008 IEC 60947-1
IP degree of protection	IP20IEC 60529 IP40 modular enclosure)IEC 60529
pollution degree	3
tropicalisation	2 IEC 61008
relative humidity	95 % 55 °C
operating altitude	2000 m
ambient air temperature for operation	-25…40 °C
ambient air temperature for storage	-40…85 °C

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
