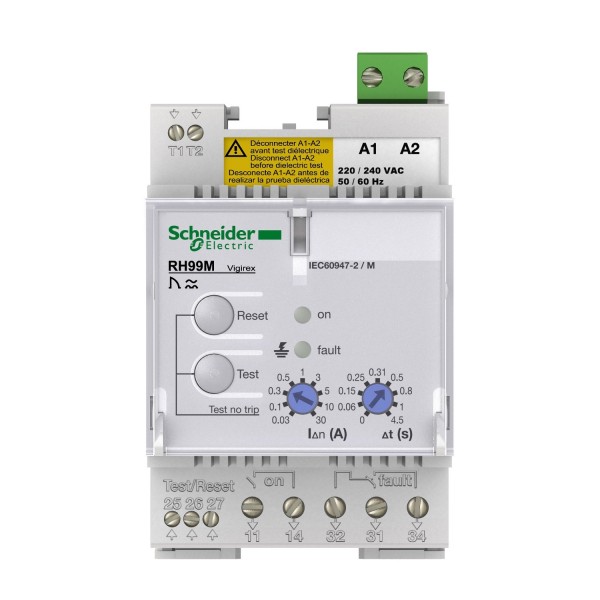

residual current monitoring relay, Vigirex RH99M, 30 mA to 30 A, 440 VAC to 525 VAC 50/60 Hz, automatic reset

Vigirex

Vigirex

RH99M

Residual current protection relay

Vigirex RH TOA earth leakage current sensor
Vigirex RH A earth leakage current sensor

Monitoring relay

TT
TN-S

440...525 V AC 50/60 Hz 70...110 %

4 VA

Earth fault current internal measurement 80...100 %

0.03...30 A alarm

Adjustable 9 settings 0,1…30 A 0…4,5 s
Instantaneous 0,03…30 A

Local
Remote test

Electronics continuous)
Power supply continuous)
Relay/sensor link continuous)

8 A

10 mA 12 V

0,3 kg

Fire resistance IEC 60695-2-1
Vibrations 13.2...100 Hz0.7 g
Vibrations 2...13.2 Hz+/- 1 mm

Class AC
Class A si

IV

Protected by sealable cover

DIN rail

97 mm

54 mm

74 mm

6

Auxiliary power supply terminal block 0,2…2,5 mm² flexible AWG 24...AWG 12
Auxiliary power supply terminal block 0,2…2,5 mm² rigid AWG 24...AWG 12
Auxiliary power supply terminal block 0,25…2,5 mm² flexible with ferrule AWG 24...AWG 12
Fault screw terminal 0,2…2,5 mm² flexible AWG 24...AWG 12
Fault screw terminal 0,2…4 mm² rigid AWG 24...AWG 12
Fault screw terminal 0,25…2,5 mm² flexible with ferrule AWG 24...AWG 12
Relay test and fault reset screw terminal 0,14…1 mm² flexible AWG 26...AWG 16
Relay test and fault reset screw terminal 0,14…1,5 mm² rigid AWG 26...AWG 16
Relay test and fault reset screw terminal 0,25…0,5 mm² flexible with ferrule AWG 26...AWG 16
Sensor screw terminal 0,14…1 mm² flexible AWG 26...AWG 16
Sensor screw terminal 0,14…1,5 mm² rigid AWG 26...AWG 16
Sensor screw terminal 0,25…0,5 mm² flexible with ferrule AWG 26...AWG 16
Voltage presence screw terminal 0,2…2,5 mm² flexible AWG 24...AWG 12
Voltage presence screw terminal 0,2…4 mm² rigid AWG 24...AWG 12
Voltage presence screw terminal 0,25…2,5 mm² flexible with ferrule AWG 24...AWG 12

Auxiliary power supply 7 mm top
Fault 8 mm bottom
Relay test and fault reset 5 mm bottom
Sensor 5 mm top
Voltage presence 8 mm bottom

Auxiliary power supply 0,6 N.m top
Fault 0,6 N.m bottom
Relay test and fault reset 0,25 N.m bottom
Sensor 0,25 N.m top
Voltage presence 0,6 N.m bottom

-35…70 °C

-55…85 °C

Conducted and radiated emissionsB CISPR 11
Conducted radio-frequency immunity test3 IEC 61000-4-6
Electrostatic discharge immunity test4 IEC 61000-4-2
High-energy conducted susceptibility4 IEC 61000-4-5
Low-energy conducted susceptibility4 IEC 61000-4-4
Radiated susceptibility3 IEC 61000-4-3

Class II

Green Premium toode

Vastavus
ELi RoHS deklaratsioon

Jah

Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.

Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

18 months
