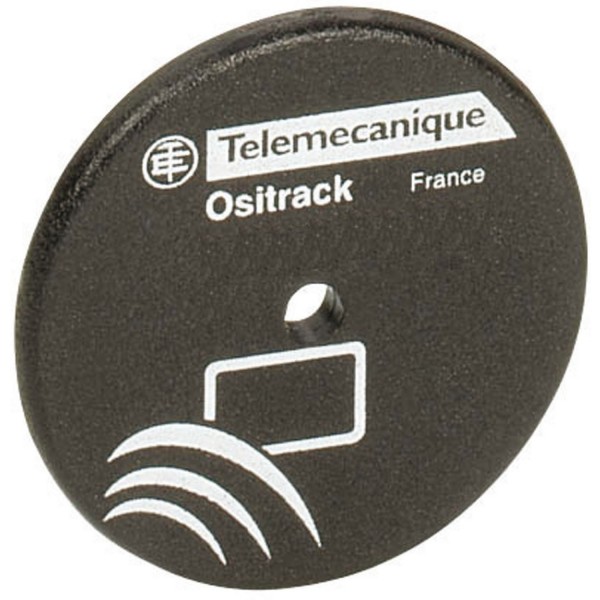

RFID electronic tag - 13.56 MHz - disc Ø 50 x 3 - 112 Bytes

Ülevaaded: 0

Tootekood: XGHB520246

Quick Overview

Saadavus: Tellimisel

23,66 € (ilma KM-ta)

Details

Main
range of product
OsiSense XG
product or component type
Electronic tag
RFID electronic tag name
XGHB
RFID frequency
13.56 MHz
design
Disc
memory capacity
112 B
associated smart antenna
XGCS
[Sn] nominal sensing distance
100 mm with XGCS89
150 mm with XGCS49 + field expander XGFEC2525
70 mm with XGCS49
70 mm with XGCS49 + field expander XGFEC540
100 mm with XGCS85
outer dimension
Ø 50 x 3 mm
quantity per set
Set of 10
read time
12 + 0.825 x (number of 16-bit words) ms
write time
12 + 5.6 x (number of 16-bit words) ms
IP degree of protection
IP68
fixing mode
By screws
Complementary
memory type
EEPROM
memory operation
Read/write
number of read cycles
Unlimited
number of write cycles
2500000 at 30 °C
100000 at -25…85 °C
maximum linear speed with "auto read/write function"
0.6 m/s with XGCS49 (read or write 10 words)
5.3 m/s with XGCS49 (read a serial number)
1.6 m/s with XGCS49 (read a word)
7.1 m/s with XGCS89 (read a serial number)
4 m/s with XGCS89 (read a word)
0.8 m/s with XGCS89 (read or write 10 words)
7.1 m/s with XGCS85 (read a serial number)
4 m/s with XGCS85 (read a word)
0.8 m/s with XGCS85 (read or write 10 words)
data retention time
10 year(s)
material
PPA (polyphthalamide)
net weight
0.015 kg
Environment
standards
ISO 15693
ambient air temperature for operation
85…140 °C for 10 min maximum not during transmission
-25…85 °C
ambient air temperature for storage
-40…90 °C
vibration resistance
2 mm conforming to EN 60068-2-6 (f = 5…29.5 Hz)
7 gn conforming to EN 60068-2-6 (f = 29.5…150 Hz)
shock resistance
30 gn conforming to EN 60068-2-27 for 11 ms
IK degree of protection
IK02 conforming to EN 50102
Offer Sustainability
REACh Regulation
EU RoHS Directive
Not applicable, out of EU RoHS legal scope
