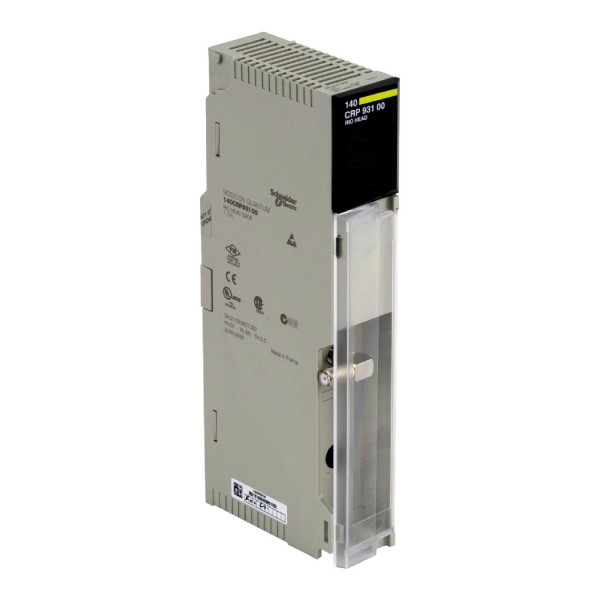

RIO head-end adaptor module Modicon Quantum - 1 connector with single cable

Product was successfully added to your shopping cart.

RIO head-end adaptor module Modicon Quantum - 1 connector with single cable

Tootekood: 140CRP93100

Quick Overview

Saadavus: Ei saa enam tellida

1 078,85 € (ilma KM-ta)

Details

Main
range of product	Modicon Quantum automation platform
product or component type	RIO head-end adaptor module

Complementary
product compatibility	Quantum 200/500/800 series Symax (any mix)
maximum drops/network	31
I/O words/drop	64 I/64 O
type of cable	75 Ohm coaxial cable
transmission rate	1544 Mbit/s
dynamic range	35 dB
isolation voltage	500 V DC coaxial center and ground
electrical connection	1 female connector F, elbowed with single cable
diagnostics startup	Power up Memory check LAN controller check
power dissipation in W	3 W 1 channel
marking	CE
bus current requirement	600 mA 1 channel
module format	Standard

Environment
product certifications	FM Class 1 Division 2
standards	UL 508 CUL CSA C22.2 No 142
resistance to electrostatic discharge	4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2
resistance to electromagnetic fields	10 V/m 80…1000 MHz conforming to IEC 801-3
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-40…85 °C
relative humidity	95 % without condensation
operating altitude	<= 5000 m

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
