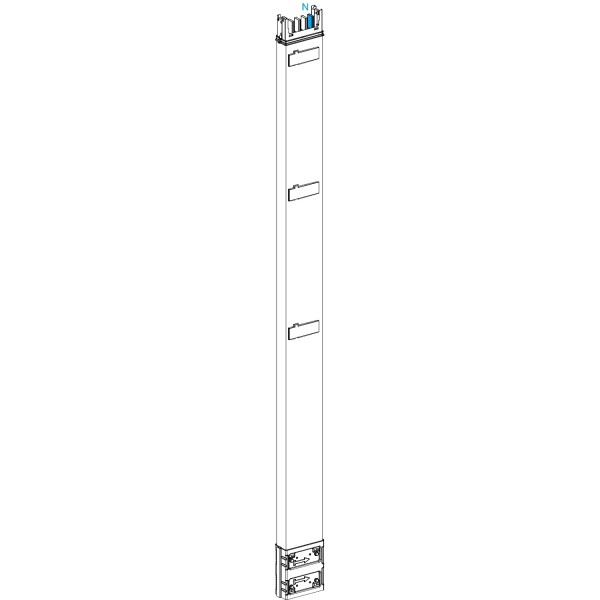

RISER DISTRIBUTION LENGTH 2M 3O 100A

Details

Main
range of product	Canalis
product name	KS
product or component type	Busbar trunking
busbar description	Rising main
BAR MATERIAL	Aluminium
device application	Rise medium power distribution
[Ie] rated operational current	100 A 35 °C
number of tap-off outlets	3

Complementary
[Ue] rated operational voltage	230...690 V
network frequency	50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
[Ui] rated insulation voltage	690 V
[Icw] rated short-time withstand current	2,6 kA
[Ipk] rated peak withstand current	15,7 kA
electrical connection	Lubricated sliding contact
radiated magnetic field	0,22 µT
thermal stress limit	6,8 kA².s
THDI	0…15 % 100 A 15…33 % 80 A 33…100 % 63 A
maximum voltage drop	<0,138 V 1 50 Hz with 1A for 100 m long <0,13 V 0,9 50 Hz with 1A for 100 m long <0,118 V 0,8 50 Hz with 1A for 100 m long <0,106 V 0,7 50 Hz with 1A for 100 m long
mounting mode	By screws
mounting position	Vertical - neutral on right
neutral position	Right
busbar trunking polarity	3L + N + PE
dimension type	Fix
width	146 mm
depth	54 mm
height	2 m
net weight	8,1 kg

Environment
standards	IEC 61439-6 IEC 60439-2

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus	Toote keskkonnaprofiil
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Halogeensisu	Halogeenivaba toode

Contractual warranty
Garantii	18 months
