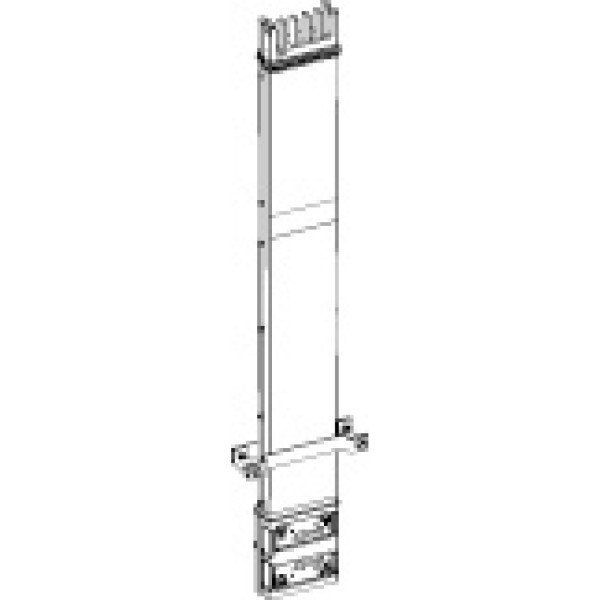

RISER FOOT WITH FIRE BARRIER

Details

Main
range of product	Canalis
product name	KS
product or component type	Busbar trunking
busbar description	Fire barrier Riser foot
BAR MATERIAL	Aluminium
device application	Rise medium power distribution
[Ie] rated operational current	400 A 35 °C
number of tap-off outlets	0

Complementary
[Ue] rated operational voltage	230...690 V
network frequency	50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
[Ui] rated insulation voltage	690 V
[Icw] rated short-time withstand current	18,8 kA
[Ipk] rated peak withstand current	49,2 kA
electrical connection	Lubricated sliding contact
radiated magnetic field	1 µT
thermal stress limit	354 kA².s
THDI	0…15 % 400 A 15…33 % 315 A 33…100 % 250 A
maximum voltage drop	<0,022 V 0,9 50 Hz with 1A for 100 m long <0,022 V 0,8 50 Hz with 1A for 100 m long <0,021 V 0,7 50 Hz with 1A for 100 m long <0,018 V 1 50 Hz with 1A for 100 m long
mounting mode	By screws
mounting position	Vertical - neutral on right
maximum load	680 kg
neutral position	Right
busbar trunking polarity	3L + N + PE
dimension type	Fix
width	67 mm
depth	255 mm
height	1150 mm
net weight	12 kg

Environment
standards	IEC 60439-2 IEC 61439-6

Contractual warranty
Garantii	18 months
