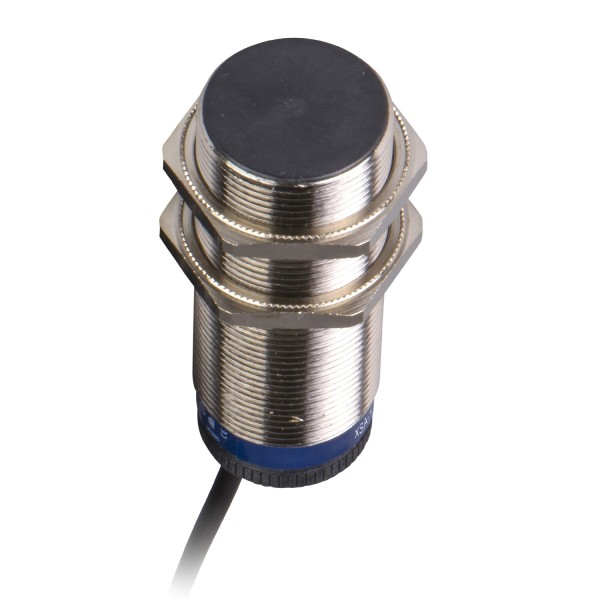

Rot. monitoring - M30 - Sn10mm - 120..3000c/mn - 24..240VAC/DC - cable 5m

Ülevaaded: 0

Tootekood: XSAV32801L05

Quick Overview

Saadavus: Ei saa enam tellida

181,15 € (ilma KM-ta)

Details

Main
range of product
OsiSense XS
series name
Application
sensor type
Inductive proximity sensor
device application
Rotation monitoring
sensor name
XSA
sensor design
Cylindrical M30
size
81 mm
body type
Fixed
detector flush mounting acceptance
Flush mountable
material
Metal
enclosure material
Nickel plated brass
type of output signal
Discrete
wiring technique
2-wire
[Sn] nominal sensing distance
10 mm
discrete output function
1 NC
output circuit type
AC/DC
electrical connection
Cable
cable length
5 m
[Us] rated supply voltage
24...210 V DC
24...240 V AC 50/60 Hz
switching capacity in mA
5...200 mA DC
5...350 mA AC
IP degree of protection
IP67 conforming to IEC 60529
Complementary
thread type
M30 x 1.5
detection face
Frontal
front material
PPS
adjustable frequency range
120…3000 cyc/mn
operating zone
0…8 mm
differential travel
3...15% of Fr
repeat accuracy
3% of Sr
cable composition
2 x 0.34 mm²
wire insulation material
PvR
status LED
Output state: 1 LED (red)
supply voltage limits
20…264 V AC/DC
maximum residual current
1.5 mA open state
switching frequency
<= 800 Hz
maximum voltage drop
<5.7 V (closed)
run-up delay at power-up
3 s reduce
marking
CE
threaded length
57 mm
height
30 mm
length
81 mm
net weight
0.3 kg
Environment
product certifications
CCC
UL
CSA
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…85 °C
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Circularity Profile
Contractual warranty
Warranty
18 months
