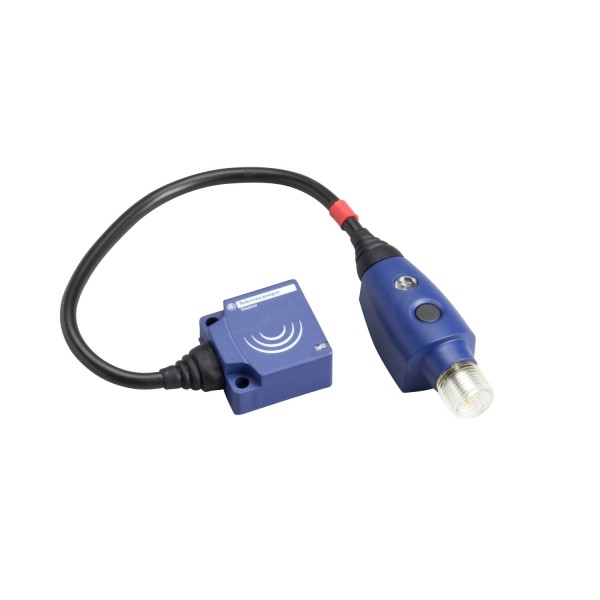

rotation monitoring hazardous area - 26x26x13 - Sn 10mm - NC

Details

Main
range of product	OsiSense XS ATEX D
series name	Application
sensor type	Inductive proximity sensor
device application	Rotation monitoring ATEX dust
sensor name	XS9
sensor design	Flat form 26 x 26 x 13
size	13 mm
body type	Fixed
detector flush mounting acceptance	Flush mountable
material	Plastic
enclosure material	PBT
[Sn] nominal sensing distance	10 mm
type of output signal	Discrete
wiring technique	3-wire
discrete output function	1 NC
output circuit type	DC
discrete output type	PNP
electrical connection	Remote male connector M12, 4 pins
cable length	0.15 m
[Us] rated supply voltage	12...24 V DC
switching capacity in mA	<= 100 mA
IP degree of protection	IP67 double insulation conforming to IEC 60529

Complementary
detection face	Frontal
front material	PBT
sensing range	8...15 mm
adjustable frequency range	6…6000 cyc/mn
operating zone	0…8 mm
differential travel	3...15% of Sr
repeat accuracy	3% of Sr
wire insulation material	PvR
status LED	Supply on: 1 LED (green) Output state: 1 LED (yellow)
supply voltage limits	10…36 V DC
maximum residual current	100 mA open state
switching frequency	<= 800 Hz
maximum voltage drop	<2 V (closed)
current consumption	0...10 mA no-load
run-up delay at power-up	9 s standard
marking	II2 D-Ex tb IIIC T90°C Db IP68
depth	13 mm
height	40 mm
width	26 mm

Environment
environmental characteristic	Hazardous location
standards	EN/IEC 60079-31 EN/IEC 60079-0
directives	94/9/EC - ATEX directive
product certifications	INERIS 06ATEX0065X
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C
vibration resistance	25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	50 gn for 11 ms conforming to IEC 60068-2-27
dust zone	Zone 21 - 22

Offer Sustainability
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes

Contractual warranty
Warranty	18 months
