  • SEC series Smart terminal controller wireless Zigbee Pro - 4I+4AO+5DO - 230 Vac

Product was successfully added to your shopping cart.

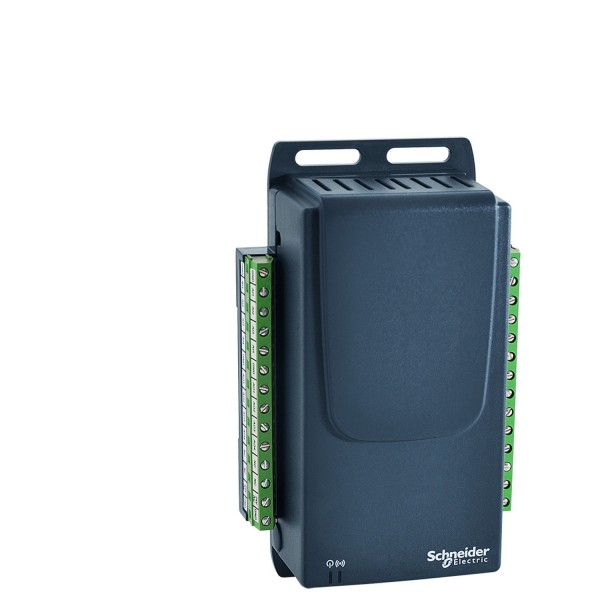

SEC series Smart terminal controller wireless Zigbee Pro - 4I+4AO+5DO - 230 Vac

Ülevaaded: 0

Tootekood: SEC-TEA-230-5045

Quick Overview

Saadavus: Ei saa enam tellida

605,59 € (ilma KM-ta)

Details

Main
range
EcoStruxure Building Expert
product name
SEC Series
device short name
SEC-TE
product or component type
Smart terminal controller
colour tint
Black
Complementary
device application
HVAC
[Us] rated supply voltage
220...240 V AC 50/60 Hz +/- 15 %
network frequency
50 Hz
60 Hz
power consumption in VA
10 VA no-load
range compatibility
EnOcean MPM
communication port protocol
Zigbee Pro at 250 kbps
radio power
8 dBm at 2400…2483.5 MHz 250 kbps
radio power amplified
18 dBm at 2400…2483.5 MHz 250 kbps
receiver sensitivity
- 101...105 dBm
operating distance
<= 30 m outdoor line of sight
17 m typical
analogue input type
Analog input 4...20 mA or 0...10 V (impedance 1...100 kOhm)4 x
support for
1 pulse AI3
number of outputs
4 analog
1 analog
3 relay output
2 voltage free dry contact
output voltage
0...12 V DC 50 mA for analog output
24 V AC for analog output
230 V AC for relay output
material
ABS (acrylonitrile butadiene-styrene)
mounting support
DIN rail
Ceiling
Wall
width
108 mm
depth
56 mm
height
176 mm
Environment
relative humidity
0…90 %
flame retardance
UL94V0-5VB
ambient air temperature for operation
0…60 °C
ambient air temperature for storage
-20…60 °C
standards
UL 916:2007
UL 916:2010
CSA C22.2 No 205:1983
IEC 61010-1:2001
ICES-003:2004
CENELEC EN 61326-1:2006
FCC CFR 47 part 15:class B
IEEE 802.15.4
Offer Sustainability
EU RoHS Directive
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
