Details
Characteristics
| range of product | Harmony XB4 | |
|---|---|---|

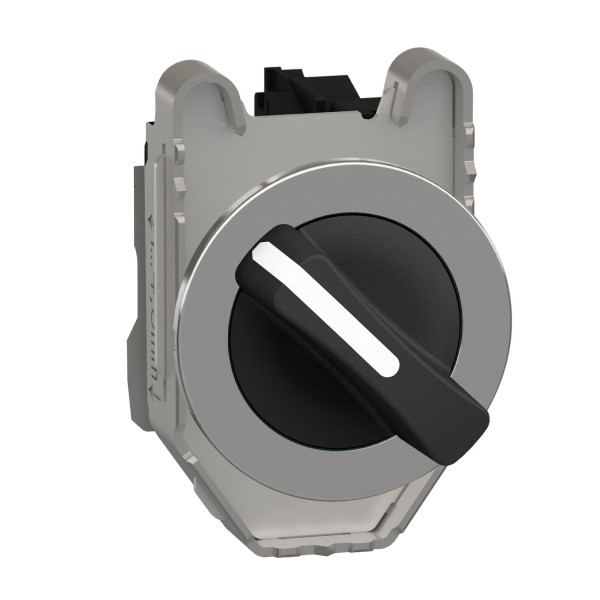

| product or component type | Selector switch | |
| device short name | XB4F | |
| bezel material | Chromium plated metal | |
| fixing collar material | Zamak | |
| mounting diameter | 30.5 mm | |
| sale per indivisible quantity | 1 | |
| head type | Built-in-flush | |
| shape of signaling unit head | Round | |
| type of operator | stay put | |
| operator profile | Black standard handle | |
| operator position information | 2 positions 90° | |
| contacts type and composition | 1 NO | |
| contact operation | Slow-break | |
| connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1 |
| height | 47 mm | |
|---|---|---|
| width | 36.6 mm | |
| depth | 70 mm | |
| terminals description ISO n°1 | (13-14)NO | |
| net weight | 0.095 kg | |
| resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m | |
| device mounting | Built-in | |
| fixing center | 40 x 50 mm (1...6 mm thick panel) | |
| fixing mode | By screws | |
| contacts usage | Standard contacts | |
| positive opening | Without | |
| torque value | 0.14 N.m NO changing electrical state | |
| mechanical durability | 1000000 cycles | |
| tightening torque | 0.8…1.2 N.m conforming to EN 60947-1 | |
| shape of screw head | Cross compatible with Philips no 1 screwdriverCross compatible with pozidriv No 1 screwdriverSlotted compatible with flat Ø 4 mm screwdriverSlotted compatible with flat Ø 5.5 mm screwdriver | |
| contacts material | Silver alloy (Ag/Ni) | |
| short-circuit protection | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 | |
| [Ith] conventional free air thermal current | 10 A conforming to EN/IEC 60947-5-1 | |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to EN 60947-1 | |
| [Uimp] rated impulse withstand voltage | EN 60947-1 6 kV | |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-16 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-10.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-10.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-10.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-11.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 | |
| electrical durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C | |
| electrical reliability | Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to EN/IEC 60947-5-4 | |
| device presentation | Complete product |
| protective treatment | TH | |
|---|---|---|
| ambient air temperature for storage | -40…70 °C | |
| ambient air temperature for operation | -40…70 °C | |
| overvoltage category | Class I conforming to IEC 60536 | |
| IP degree of protection | IP66 conforming to IEC 60529IP67 conforming to IEC 60529IP69 conforming to IEC 60529IP69K conforming to ISO 20653Type 13 conforming to UL 50 EType 12 conforming to UL 50 EType 4 conforming to UL 50 EType 4X conforming to UL 50 E | |
| IK degree of protection | IK06 conforming to IEC 50102 | |
| standards | CSA C22.2 No 14EN/IEC 60947-5-1EN/IEC 60947-5-4UL 508EN/IEC 60947-1JIS C8201-5-1CEJIS C8201-1 | |
| product certifications | UL listedCSACCCEAC | |
| vibration resistance | 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-62 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6 | |
| shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-2725 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27 |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
|---|
