Details
Müüdavad tooted
| range of product | Harmony XB5 | |
|---|---|---|

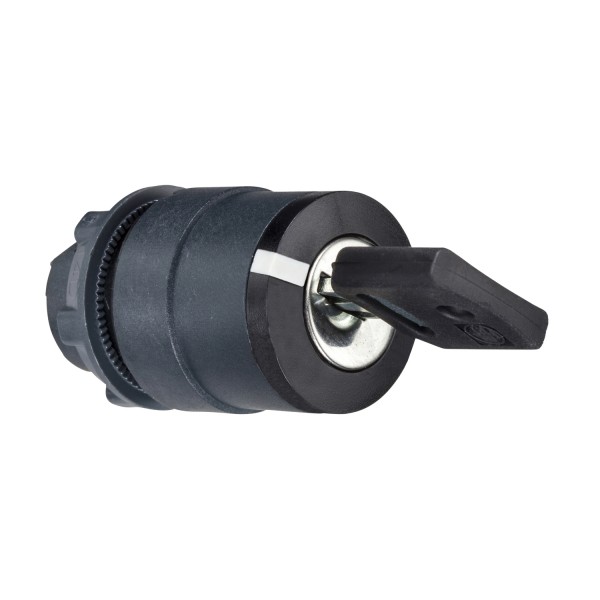

| product or component type | Head for key selector switch | |
| device short name | ZB5 | |
| bezel material | Dark grey plastic | |
| mounting diameter | 22 mm | |
| head type | Standard | |
| sale per indivisible quantity | 1 | |
| shape of signaling unit head | Round | |
| type of operator | stay put | |
| operator profile | Black key switch | |
| operator position information | 3 positions +/- 45° | |
| type of keylock | Dom 8D1 | |
| key withdrawal position | Left and center |
| CAD overall width | 29 mm | |
|---|---|---|
| CAD overall height | 29 mm | |
| CAD overall depth | 72 mm | |
| net weight | 0,057 kg | |
| mechanical durability | 1000000 cycles | |
| station name | XALD 1...5 cut-outsXALK 2...5 cut-outs | |
| electrical composition code | C4 6 single and double front mountingC5 5 single front mountingC6 5 single and double front mountingC7 4 single front mountingC8 4 single and double front mountingC11 3 single front mountingC3 6 single front mountingSF1 3 single front mountingSR1 3 single rear mounting | |
| device presentation | Basic element |
| protective treatment | TH | |
|---|---|---|
| ambient air temperature for storage | -40…70 °C | |
| ambient air temperature for operation | -40…70 °C | |
| overvoltage category | Class II IEC 60536 | |
| IP degree of protection | IP66 IEC 60529IP67IP69IP69K | |
| NEMA degree of protection | NEMA 13NEMA 4X | |
| resistance to high pressure washer | 7000000 Pa 55 °C 0.1 m | |
| IK degree of protection | IK06 IEC 50102 | |
| standards | EN/IEC 60947-1EN/IEC 60947-5-1UL 508CSA C22.2 No 14JIS C8201-5-1EN/IEC 60947-5-4JIS C8201-1 | |
| product certifications | RINADNVUL listedGLBVCSALROS (Lloyds register of shipping) | |
| vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | |
| shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Jätkusuutliku pakkumise olek | Green Premium toode | |
|---|---|---|
| REACh-määrus | ||
| ELi RoHS direktiiv | Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon | |
| Elavhõbedavaba | Jah | |
| RoHS eranditeave | ||
| Hiina EoHS regulatsioon | ||
| Keskkonnaalane avaldus | ||
| Ringlusprofiil |
| Garantii | 18 months |
|---|
