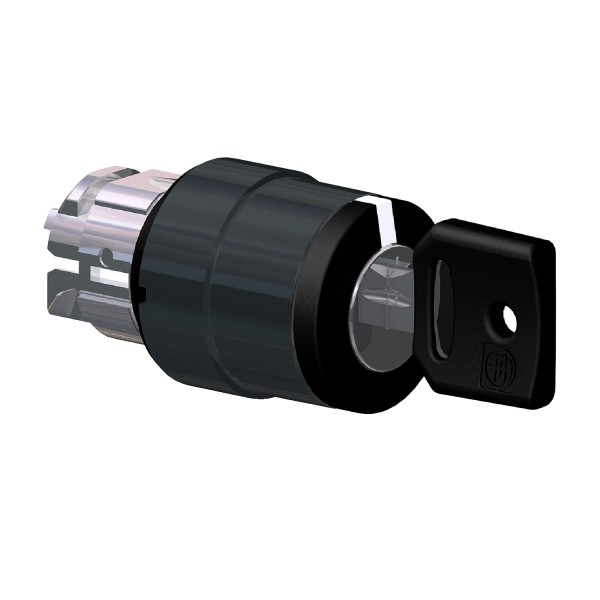

selector switch head Ø22 3-position spring return Ronis 421E

Product was successfully added to your shopping cart.

selector switch head Ø22 3-position spring return Ronis 421E

Tootekood: ZB4BG8127

Quick Overview

Saadavus: Ei saa enam tellida

67,08 € (ilma KM-ta)

Details

Main
range of product	Harmony XB4
product or component type	Head for key selector switch
device short name	ZB4
bezel material	Black metal
mounting diameter	22 mm
sale per indivisible quantity	1
shape of signaling unit head	Round
return	Right to centre
operator profile	Black key switch
type of operator	Spring return
operator position information	3 positions +/- 45°
type of keylock	Ronis 421E
key withdrawal position	Center

Complementary
CAD overall width	29 mm
CAD overall height	29 mm
CAD overall depth	72 mm
net weight	0.098 kg
resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
mechanical durability	1000000 cycles
electrical composition code	C3 for <6 contacts using single blocks in front mounting C4 for <6 contacts using single and double blocks in front mounting C5 for <5 contacts using single blocks in front mounting C6 for <5 contacts using single and double blocks in front mounting C7 for <4 contacts using single blocks in front mounting C8 for <4 contacts using single and double blocks in front mounting C11 for <3 contacts using single blocks in front mounting
device presentation	Basic element

Environment
protective treatment	TH
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-40…70 °C
overvoltage category	Class I conforming to IEC 60536
IP degree of protection	IP66 conforming to IEC 60529 IP67 IP69 IP69K
NEMA degree of protection	NEMA 13 NEMA 4X
standards	EN/IEC 60947-5-4 CSA C22.2 No 14 EN/IEC 60947-1 EN/IEC 60947-5-1 UL 508 EN/IEC 60947-5-5 GB 14048.5
product certifications	UL listed RINA BV CSA DNV GL LROS (Lloyds register of shipping)
vibration resistance	5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information

Contractual warranty
Warranty	18 months
