selector switch head Ø22 3-position stay put 4 multichips

Product was successfully added to your shopping cart.

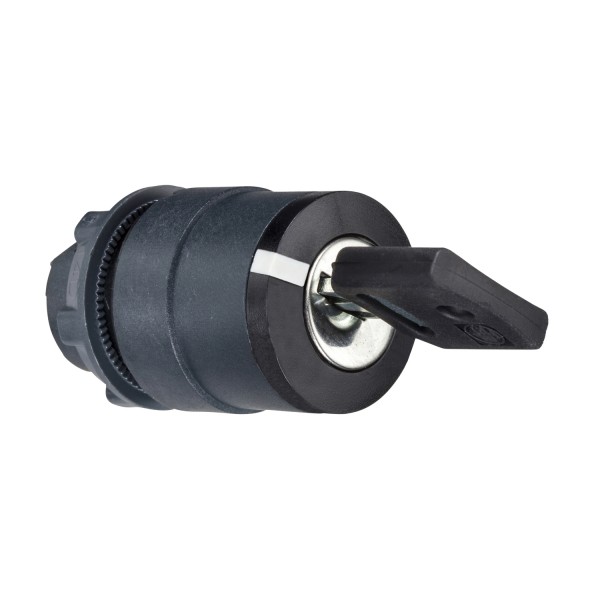

selector switch head Ø22 3-position stay put 4 multichips

Tootekood: ZB5AG09K

Quick Overview

Saadavus: Ei saa enam tellida

57,40 € (ilma KM-ta)

Details

Main
range of product	Harmony XB5
product or component type	Head for key selector switch
device short name	ZB5
bezel material	Dark grey plastic
mounting diameter	22 mm
sale per indivisible quantity	1
shape of signaling unit head	Round
type of operator	stay put
operator profile	Black key switch
operator position information	3 positions +/- 45°
type of keylock	Special key
key withdrawal position	Right

Complementary
CAD overall width	29 mm
CAD overall height	29 mm
CAD overall depth	72 mm
mechanical durability	1000000 cycles
electrical composition code	C4 for <6 contacts using single and double blocks in front mounting C5 for <5 contacts using single blocks in front mounting C6 for <5 contacts using single and double blocks in front mounting C7 for <4 contacts using single blocks in front mounting C8 for <4 contacts using single and double blocks in front mounting C11 for <3 contacts using single blocks in front mounting C3 for <6 contacts using single blocks in front mounting SF1 for <3 contacts using single blocks in front mounting SR1 for <3 contacts using single blocks in rear mounting

Environment
protective treatment	TH
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-40…70 °C
overvoltage category	Class II conforming to IEC 60536
IP degree of protection	IP66 conforming to IEC 60529 IP67 IP69 IP69K
NEMA degree of protection	NEMA 13 NEMA 4X
resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
IK degree of protection	IK06 conforming to IEC 50102
standards	UL 508 JIS C8201-5-1 CSA C22.2 No 14 EN/IEC 60947-1 EN/IEC 60947-5-4 EN/IEC 60947-5-1 JIS C8201-1
product certifications	CSA GL BV RINA LROS (Lloyds register of shipping) UL listed DNV
vibration resistance	5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Contractual warranty
Warranty	18 months
