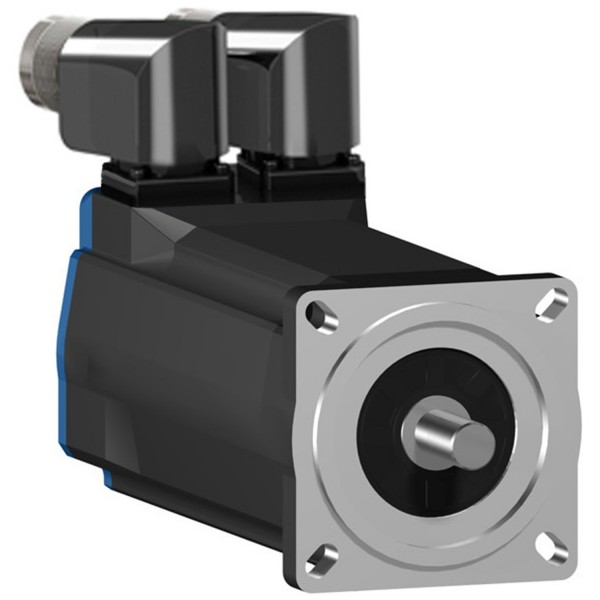

servo motor SH3 070 2,2Nm,nokey,single,nobrake,90°conn.IP54/IP65,8k RPM

Ülevaaded: 0

Tootekood: SH30702P01A2000

Quick Overview

Saadavus: Tellimisel

1 135,91 € (ilma KM-ta)

Details

Main
range compatibility
PacDrive 3
product or component type
Servo motor
device short name
SH3.....P
Complementary
maximum mechanical speed
8000 rpm
[Us] rated supply voltage
115...480 V
network number of phases
Three phase
continuous stall current
2.9 A
continuous stall torque
2.2 N.m at 115...480 V three phase
continuous power
1130 W
peak stall torque
7.6 N.m at 115...480 V three phase
nominal output power
340 W at 115 V three phase
660 W at 230 V three phase
1190 W at 400 V three phase
1360 W at 480 V three phase
nominal torque
2.15 N.m at 115 V three phase
2.1 N.m at 230 V three phase
1.9 N.m at 400 V three phase
1.8 N.m at 480 V three phase
nominal speed
1500 rpm at 115 V three phase
3000 rpm at 230 V three phase
6000 rpm at 400 V three phase
7200 rpm at 480 V three phase
maximum current Irms
11.8 A
shaft end
Smooth shaft
shaft diameter
11 mm
shaft length
23 mm
IP degree of protection
IP54 shaft bushing without shaft seal ring: conforming to EN/IEC 60034-5
IP65 motor: conforming to EN/IEC 60034-5
IP65 shaft bushing: conforming to EN/IEC 60034-5
encoder type
Absolute single turn SinCos Hiperface
speed feedback resolution
128 periods
holding brake
Without
mounting support
International standard flange
motor flange size
70 mm
torque constant
0.77 N.m/A at 120 °C
back emf constant
48 V/krpm at 20 °C
number of motor poles
3
rotor inertia
0.41 kg.cm²
stator resistance
4.2 Ohm
stator inductance
29.65 mH
maximum radial force Fr
710 N at 1000 rpm
560 N at 2000 rpm
490 N at 3000 rpm
450 N at 4000 rpm
410 N at 5000 rpm
390 N at 6000 rpm
maximum axial force Fa
80 N
type of cooling
Natural convection
length
187 mm
centring collar diameter
60 mm
centring collar depth
2.5 mm
number of mounting holes
4
mounting holes diameter
5.5 mm
circle diameter of the mounting holes
82 mm
net weight
2.8 kg
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
